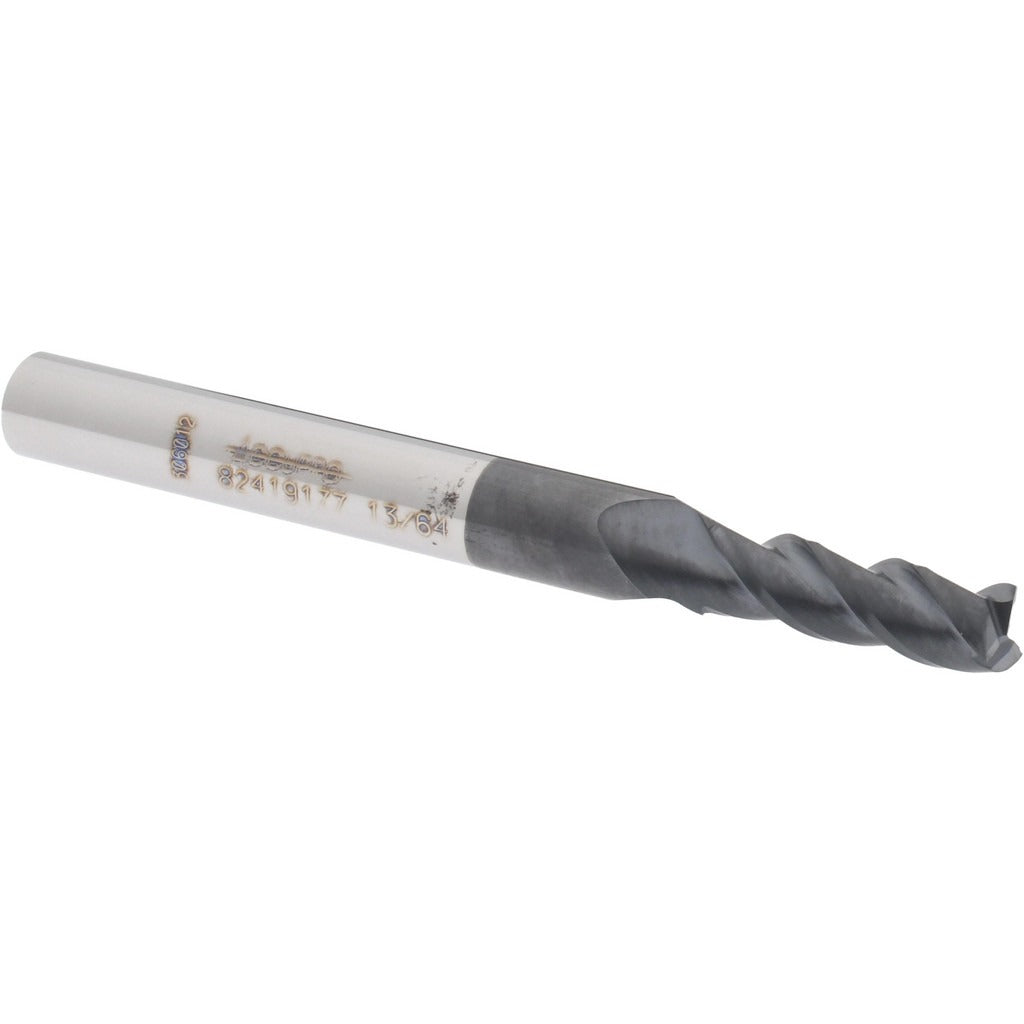

Accupro 12181940 Square End Mill 13/64 in 3 Flute Carbide

Product Description

The ACCUPRO 12181940 is a solid carbide square end mill designed for precision milling operations in ferrous and non-ferrous metals. It features a 13/64 inch (0.2031 inch) cutting diameter, a 5/8 inch length of cut, and a 1/4 inch shank diameter for use in standard collet chucks and tool holders. The AlTiN coating provides heat resistance and extended tool life in high-temperature cutting conditions. A 40-degree helix angle and spiral flute geometry promote efficient chip evacuation and reduce cutting forces. This end mill is center-cutting, allowing plunge entry. It is intended for use by machinists and tool-and-die tradespeople in CNC and manual milling applications.

This end mill is suited for slot milling, profiling, and contouring operations in ferrous alloys, stainless steel, and hardened materials where a high-performance coated carbide tool is required. The regular-length configuration and 2-1/2 inch overall length make it appropriate for general-purpose work in vertical machining centers and manual knee mills. Its right-hand cut and right-hand flute configuration are standard for conventional and climb milling.

Key Features

• 13/64 inch (0.2031 inch) cutting diameter with mill diameter tolerance of +0.000 / -0.002 inches
• AlTiN finish for elevated heat resistance and longer tool life in demanding cuts
• 40-degree helix angle with spiral flute geometry for aggressive chip evacuation
• Center-cutting design allows direct plunge entry without pre-drilling
• Micrograin solid carbide construction for rigidity and wear resistance
• 3-flute configuration balances chip clearance and surface finish

Compatibility

Designed as a standard 1/4 inch shank square end mill compatible with collet chucks, ER collet systems, and end mill holders accepting 1/4 inch straight shanks on CNC machining centers and manual mills.

Installation Notes

Installation should be performed by a qualified machinist following standard tooling practices. Ensure the machine spindle is fully stopped and the tool holder is clean and free of debris before inserting the end mill. Secure the shank to the full recommended engagement depth in the collet or holder and verify runout before cutting. Follow machine manufacturer torque specifications for collet nuts and tool holder retention hardware.
