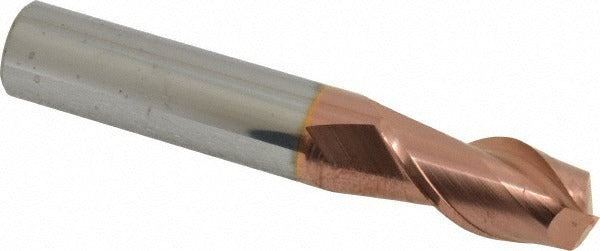

Accupro 12181478 Corner Radius End Mill 1/2 in 2 Flute Ticn

Product Description

The ACCUPRO 12181478 is a solid carbide corner radius end mill designed for precision milling operations in metalworking and machining environments. It features a 1/2 inch mill diameter, a 1 inch length of cut, and a 0.09 inch corner radius that reduces stress concentrations at the base of milled features. The micrograin carbide substrate provides the hardness and wear resistance required for demanding ferrous and non-ferrous cutting applications. A TiCN coating further extends tool life by improving surface hardness and reducing friction at the cutting edge. This tool is installed and operated by machinists and CNC programmers in job shop and production machine shop settings.

This end mill suits applications where a controlled corner radius is specified on pocketed or profiled workpiece features. The single-end, centercutting design allows plunge entry as well as side milling passes. With a right-hand flute direction and right-hand cutting orientation, it runs on standard CNC machining centers and manual knee mills. The 2-flute configuration provides adequate chip clearance for slot milling and full-width cuts, particularly in softer steels, aluminum, and similar materials.

Key Features

• 0.09 inch corner radius reduces edge chipping and meets radius callouts on machined profiles
• TiCN coating improves hardness and reduces built-up edge during cutting
• Micrograin solid carbide construction for rigidity and dimensional stability
• Centercutting design allows direct plunge entry without a pre-drilled pilot hole
• 2-flute spiral geometry provides effective chip evacuation in slot and pocket milling
• Single-end tool with 1/2 inch shank diameter for standard ER and end mill holder compatibility

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide corner radius end mill for standard 1/2 inch end mill holders and collet chuck systems used on CNC machining centers and manual mills.

Installation Notes

Installation and tool changes must be performed with the machine spindle fully stopped and the control in a safe state. Seat the 1/2 inch shank fully into the holder and torque the retention mechanism per the toolholder manufacturer specification. Confirm runout with a dial indicator before beginning a production cut. Follow applicable shop safety procedures and machine manufacturer guidelines for speeds and feeds based on workpiece material.
