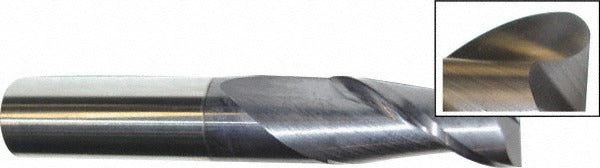

Accupro 12181425 Corner Radius End Mill 3/8 in 2 Flute

Product Description

The ACCUPRO 12181425 is a solid carbide corner radius end mill designed for precision milling operations in ferrous and hardened materials. It features a 3/8 inch diameter with a 0.015 inch corner radius that reduces stress concentration at the cut edge and extends tool life compared to sharp-corner geometry. The 2-flute, right-hand spiral configuration supports efficient chip evacuation. An AlTiN coating provides high-temperature oxidation resistance, making this end mill well suited for dry or near-dry cutting at elevated spindle speeds. This tool is installed and operated by machinists and CNC programmers in job shop and production environments.

This end mill is used in vertical and horizontal machining centers as well as manual knee mills where a center-cutting, single-end tool is required. The 7/8 inch length of cut and 2-1/2 inch overall length make it practical for shallow-to-moderate depth pocket milling, contouring, and slotting in steel, stainless, cast iron, and similar materials. The micrograin carbide substrate supports rigidity in tight-tolerance applications. Right-hand cutting direction is standard for conventional CNC toolpath programming.

Key Features

• 0.015 inch corner radius reduces edge chipping and improves surface finish at floor-wall intersections
• AlTiN coating enhances heat resistance for dry cutting and high-speed machining in ferrous alloys
• Micrograin solid carbide substrate provides rigidity and wear resistance
• 40-degree helix angle promotes smooth cutting action and effective chip evacuation
• Center-cutting design allows direct plunge entry without a pre-drilled hole
• Single-end, right-hand flute direction suits standard CNC and manual mill setups

Compatibility

Designed as a standard shank end mill for use in 3/8 inch collets, end mill holders, or shrink-fit toolholders on CNC machining centers and manual mills requiring a corner radius end mill.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully powered down and locked out before loading or removing the tool from its holder. Verify the shank is fully seated to the recommended engagement depth in the toolholder and that the collet or set screw is torqued per the toolholder manufacturer specification. Inspect the corner radius and cutting edges for chips or damage before each use.
