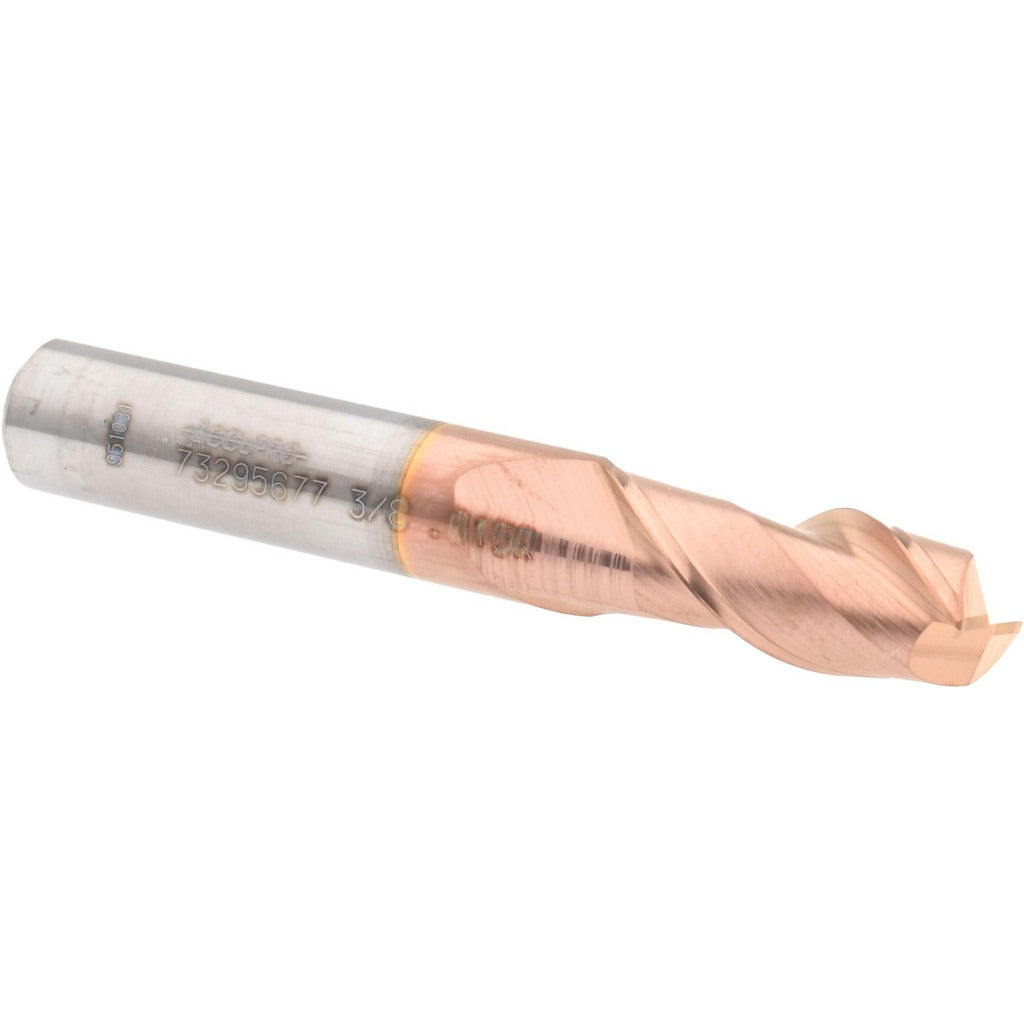

Accupro 12181416 Corner Radius End Mill 3/8 in 2 Flute

Product Description

The ACCUPRO 12181416 is a single-end corner radius end mill designed for precision milling in ferrous and non-ferrous materials. Built from micrograin solid carbide and coated with TiCN, it delivers extended tool life in demanding cutting environments. The 0.015-inch corner radius reduces stress concentration at the cutting edge, making it suitable for finishing and semi-finishing passes where sharp corners are not acceptable. With a 40-degree helix angle and 2 right-hand spiral flutes, it evacuates chips efficiently and maintains surface finish quality. Licensed machinists and CNC operators are the primary users of this tooling.

This end mill is sized for use in CNC machining centers and manual mills equipped with 3/8-inch collets or end mill holders. With a 3/8-inch diameter, 7/8-inch length of cut, and 2-1/2-inch overall length, it is well suited for pocket milling, profiling, and slot cutting operations in tool rooms, job shops, and production environments. The centercutting design allows plunge entry where required. Right-hand cutting direction is standard for conventional milling machine spindle rotation.

Key Features

• Micrograin solid carbide construction for wear resistance and dimensional stability
• TiCN coating extends tool life in abrasive and hard materials
• 0.015-inch corner radius reduces edge chipping and improves part surface finish
• 40-degree helix angle promotes efficient chip evacuation and reduced cutting forces
• Centercutting geometry allows direct plunge milling without a pre-drilled hole
• Single-end design with right-hand flute direction and right-hand cutting direction

Compatibility

Designed for use in 3/8-inch collet chucks, shrink-fit holders, and end mill holders on CNC machining centers and manual vertical mills. Compatible with standard 3/8-inch toolholding systems.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and the machine is in a safe state before changing tooling. Seat the shank fully into the holder to the recommended engagement depth and torque the collet nut or set screw to the toolholder manufacturer specifications. Verify runout with a dial indicator before production cutting to confirm proper seating.
