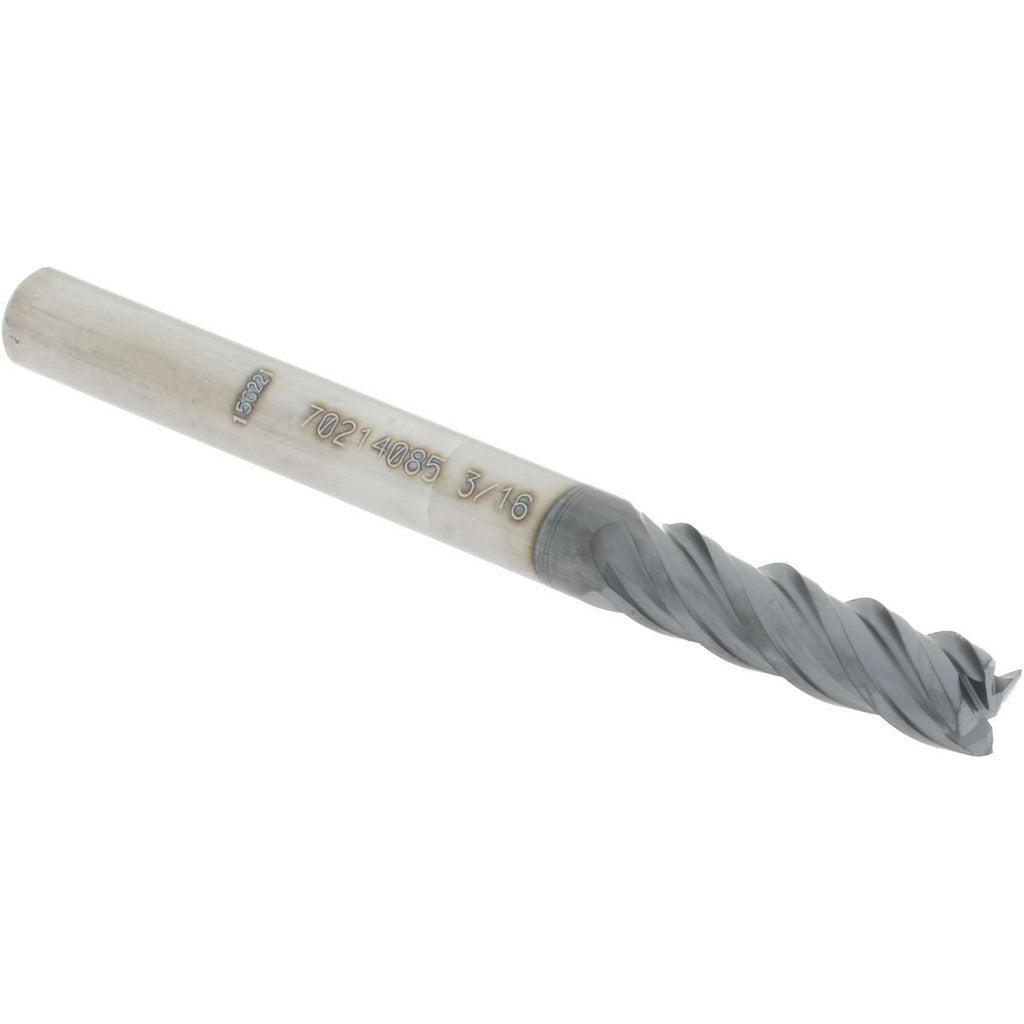

Accupro 12180419 Square End Mill 3/16 Inch 4 Flute Carbide

Product Description

The ACCUPRO 12180419 is a 4-flute, solid carbide square end mill designed for precision milling in ferrous and non-ferrous materials. It carries an AlTiN (aluminum titanium nitride) finish that improves heat resistance and extends tool life at elevated cutting speeds. The 40-degree helix angle promotes efficient chip evacuation and reduces cutting forces. At 3/16 inch in diameter with a 5/8 inch length of cut and 2 inch overall length, this is a compact tool suited for detail work, slotting, profiling, and pocketing. It is centercutting, allowing plunge entry. Machinists, toolmakers, and CNC operators install this tool in milling machines and machining centers.

This end mill fits standard 3/16 inch collets and tool holders used in vertical mills, CNC machining centers, and manual knee mills. Its compact geometry makes it well suited for tight-pocket milling, contour work, and finishing passes in steel, stainless steel, cast iron, and high-temperature alloys. The micrograin carbide substrate provides the hardness and edge retention needed for demanding production environments. Right-hand cut and right-hand spiral flutes are standard for conventional and climb milling operations.

Key Features

• Solid micrograin carbide construction for high hardness and wear resistance
• AlTiN finish improves oxidation resistance and extends tool life at high cutting temperatures
• 40-degree helix angle promotes aggressive chip evacuation and smooth cutting action
• Centercutting design allows direct plunge entry without a pre-drilled hole
• 4-flute geometry balances material removal rate with surface finish quality
• Right-hand cut and right-hand flute direction compatible with standard spindle rotation

Compatibility

Designed for use in any milling machine or machining center equipped with a 3/16 inch collet, end mill holder, or compatible shrink-fit tooling system.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and locked out before installing or removing the tool. Seat the shank fully in the collet or holder to the minimum insertion depth recommended for the holder style, and verify runout with a dial indicator before beginning a cut. Do not exceed the tool manufacturer's recommended speeds and feeds for the workpiece material and coating type.
