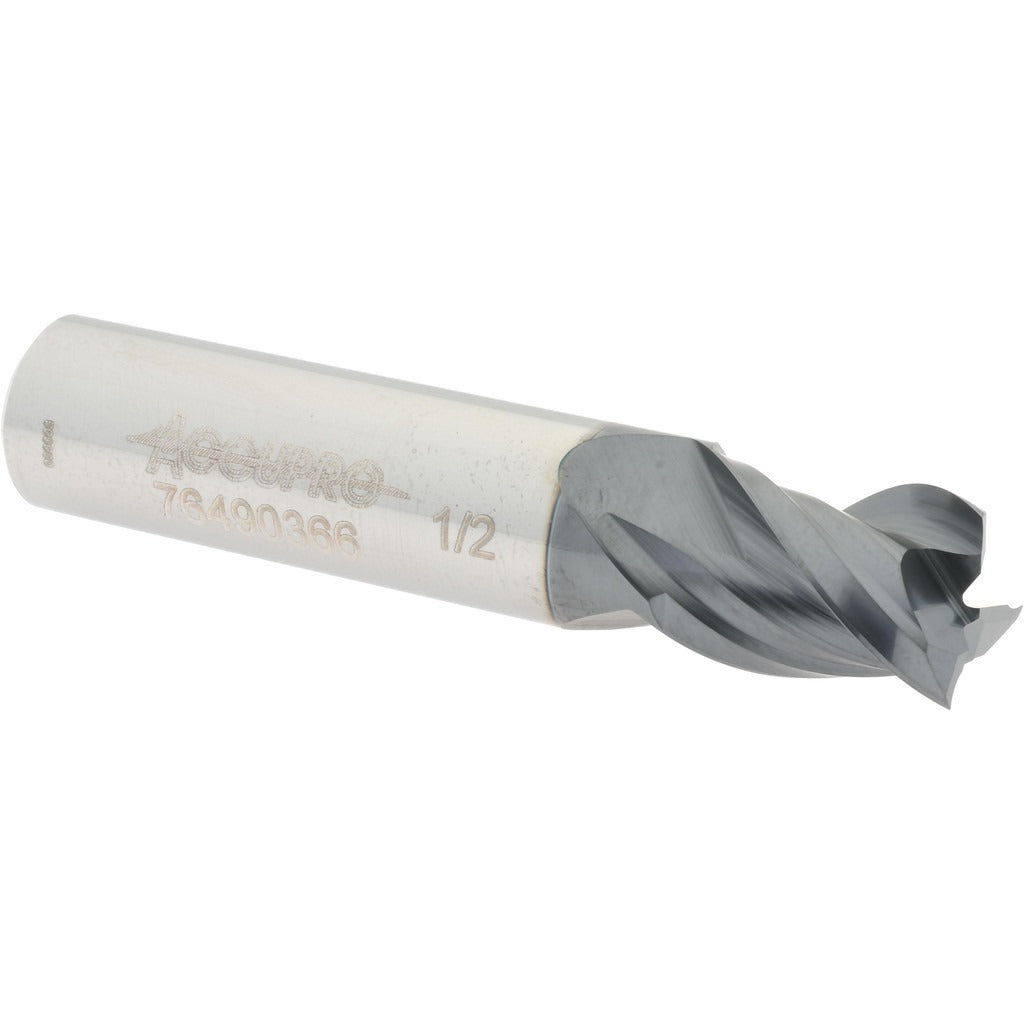

Accupro 12179741 Square End Mill 1/2 in 3 Flute Carbide Altin

Product Description

The ACCUPRO 12179741 is a solid carbide square end mill designed for precision milling in demanding shop environments. It features a 0.5000 inch mill diameter, a 5/8 inch length of cut, and a 2-1/2 inch overall length. The three-flute, right-hand spiral design runs at a 40-degree helix angle and carries an AlTiN (aluminum titanium nitride) finish, which improves heat resistance and tool life in dry or semi-dry cutting conditions. The micrograin carbide substrate provides the rigidity needed for aggressive material removal while maintaining edge sharpness. This is a centercutting tool, allowing for direct plunge entry into workpieces without a pre-drilled pilot hole.

This end mill is suited for milling operations in ferrous and non-ferrous metals including hardened steels, stainless, cast iron, and titanium alloys where the AlTiN coating provides a thermal barrier. The stub length profile keeps deflection low during full-width slotting or side milling passes. Typical applications include profile milling, pocketing, slotting, and contouring on CNC machining centers and manual knee mills. It fits 1/2 inch collets and milling chucks without adapters.

Key Features

• Solid micrograin carbide construction for rigidity and edge retention
• AlTiN finish extends tool life in high-temperature cutting environments
• Three-flute, 40-degree right-hand spiral for efficient chip evacuation
• Centercutting geometry enables direct plunge milling
• Stub length profile minimizes deflection in slotting and pocketing operations
• Mill diameter tolerance of +0.000 / -0.002 inches for consistent fit

Compatibility

Designed as a direct-fit replacement for 1/2 inch shank square end mill applications using standard ER collets, end mill holders, or hydraulic chucks on CNC machining centers and manual mills.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully powered down and locked out before changing tooling. Seat the shank to the minimum engagement depth recommended for the holder type being used, and verify runout with a dial indicator before beginning a cut. Do not exceed the rated depth of cut for the material being machined.
