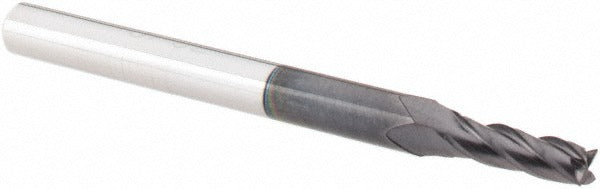

Accupro 12179030 Square End Mill 3/32 in 4 Flute Carbide

Product Description

The ACCUPRO 12179030 is a solid carbide square end mill designed for precision milling in metalworking and machining applications. It measures 3/32 inch (0.0938 inch) in cutting diameter with a 5/16 inch (0.3125 inch) length of cut, a 1/8 inch shank diameter, and a 1-1/2 inch overall length. The four-flute, right-hand spiral design runs at a 30-degree helix angle and features an AlTiN (aluminum titanium nitride) coating for extended tool life at elevated cutting temperatures. Micrograin carbide construction provides the hardness and edge retention needed for close-tolerance work in ferrous and non-ferrous materials. The centercutting geometry allows plunge milling as well as conventional peripheral cuts.

This end mill is suited for die and mold work, fixture machining, and finish profiling on CNC machining centers and manual mills. The regular-length configuration keeps deflection low in tight-clearance slots and pockets. It is appropriate for cutting steel alloys, stainless, cast iron, and hardened materials where an AlTiN coating delivers thermal protection. The 3/32 inch diameter makes it well-matched to fine-feature work such as narrow slots, keyways, and detail contouring where larger tooling cannot reach.

Key Features

• Solid micrograin carbide construction for superior hardness and edge retention
• AlTiN coating extends tool life in high-temperature cutting of ferrous materials
• Four flutes with 30-degree right-hand spiral helix for efficient chip evacuation
• Centercutting design allows plunge entry without a pre-drilled pilot hole
• Right-hand cut and right-hand flute orientation for standard spindle operation
• Mill diameter tolerance of +0.0002 / -0.0008 inch for close-tolerance fitment

Compatibility

Designed as a standard shank end mill for use in 1/8 inch collets or end mill holders on CNC machining centers, vertical mills, and compatible rotary tool setups requiring a 3/32 inch cutting diameter.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Power down and lock out the spindle before inserting or removing tooling. Seat the shank fully and evenly in the collet or holder and torque the retention mechanism per the toolholder manufacturer specification. Confirm runout with a dial indicator before beginning a cut, particularly at this diameter where even minor runout accelerates tool wear.
