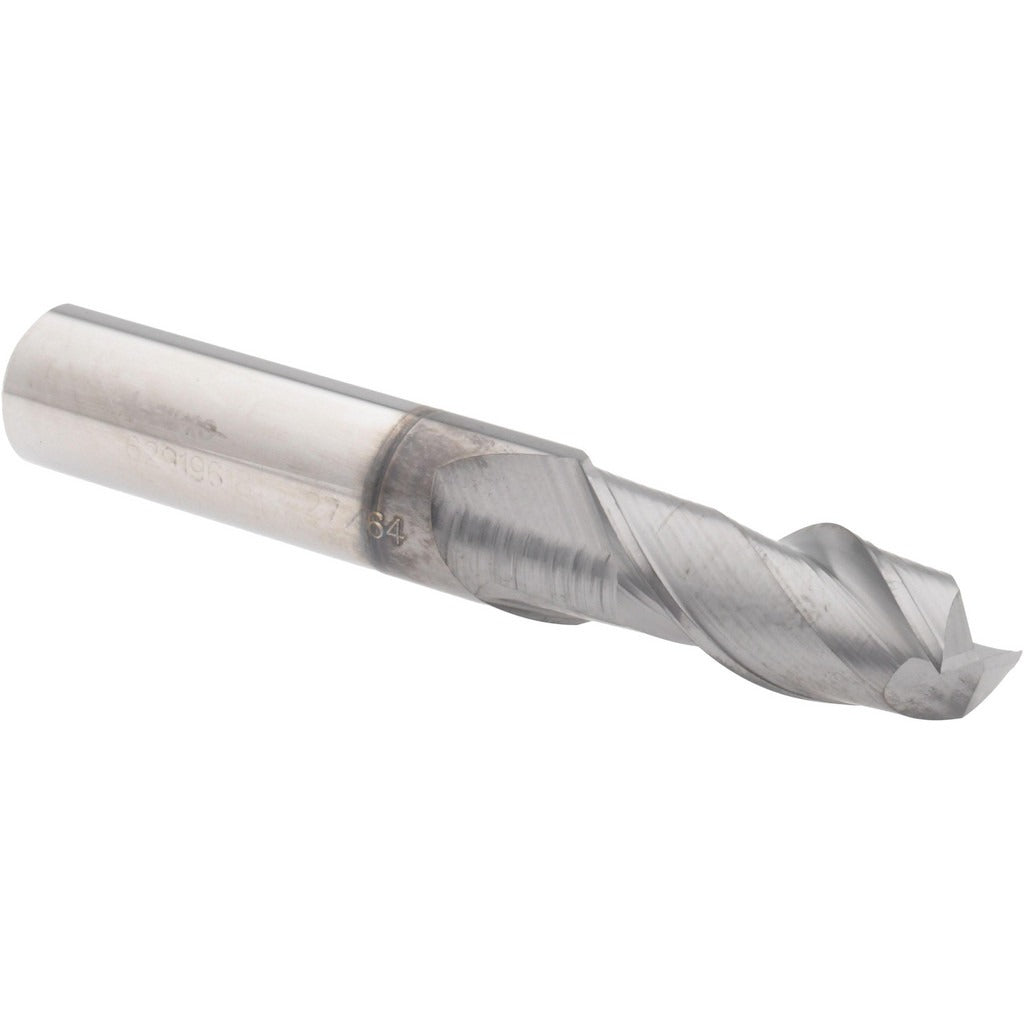

Accupro 12178761 Square End Mill 27/64 in 2 Flute Carbide

Product Description

The ACCUPRO 12178761 is a solid carbide square end mill designed for precision milling in metalworking and machining applications. The cutter measures 27/64 inch (0.4219 inch) in diameter with a 1 inch length of cut and a 7/16 inch shank diameter. It features a 2-flute spiral configuration with a 40-degree helix angle and an nACRo coating that improves wear resistance and heat management at the cutting edge. Overall length is 2-3/4 inches. The micrograin carbide substrate supports higher cutting speeds and longer tool life compared to standard carbide grades. Machinist or CNC operators install this tool in vertical or horizontal machining centers and manual mills.

This end mill suits general-purpose slotting, profiling, and peripheral milling in ferrous and non-ferrous materials. The centercutting geometry allows plunge entry as well as conventional side milling. Right-hand cut and right-hand flute orientation match standard spindle rotation on most machining centers. The 40-degree helix promotes smooth chip evacuation and reduces chatter during interrupted cuts. It is well suited for job shop work, tool-and-die, and production machining environments where consistent tolerances are required.

Key Features

• 27/64 inch (0.4219 inch) cutting diameter with a mill diameter tolerance of +0.000 / -0.002 inch
• Solid micrograin carbide construction for rigidity and extended cutting life
• nACRo finish coating for improved heat and wear resistance
• 40-degree spiral helix angle promotes efficient chip evacuation and reduced chatter
• Centercutting design enables plunge milling in addition to side milling
• Right-hand cut, right-hand flute for standard spindle compatibility

Compatibility

Designed as a standard shank end mill compatible with 7/16 inch ER collets, end mill holders, and similar toolholding systems used in CNC machining centers and manual knee mills.

Installation Notes

Installation should be performed by a qualified machinist or CNC technician. Power down and lock out the spindle before loading or unloading the tool. Seat the shank fully into the collet or tool holder and tighten to the holder manufacturer's specified torque range using appropriate wrenches — do not use makeshift tools that may damage the shank. Verify runout with a dial indicator before beginning a production run.
