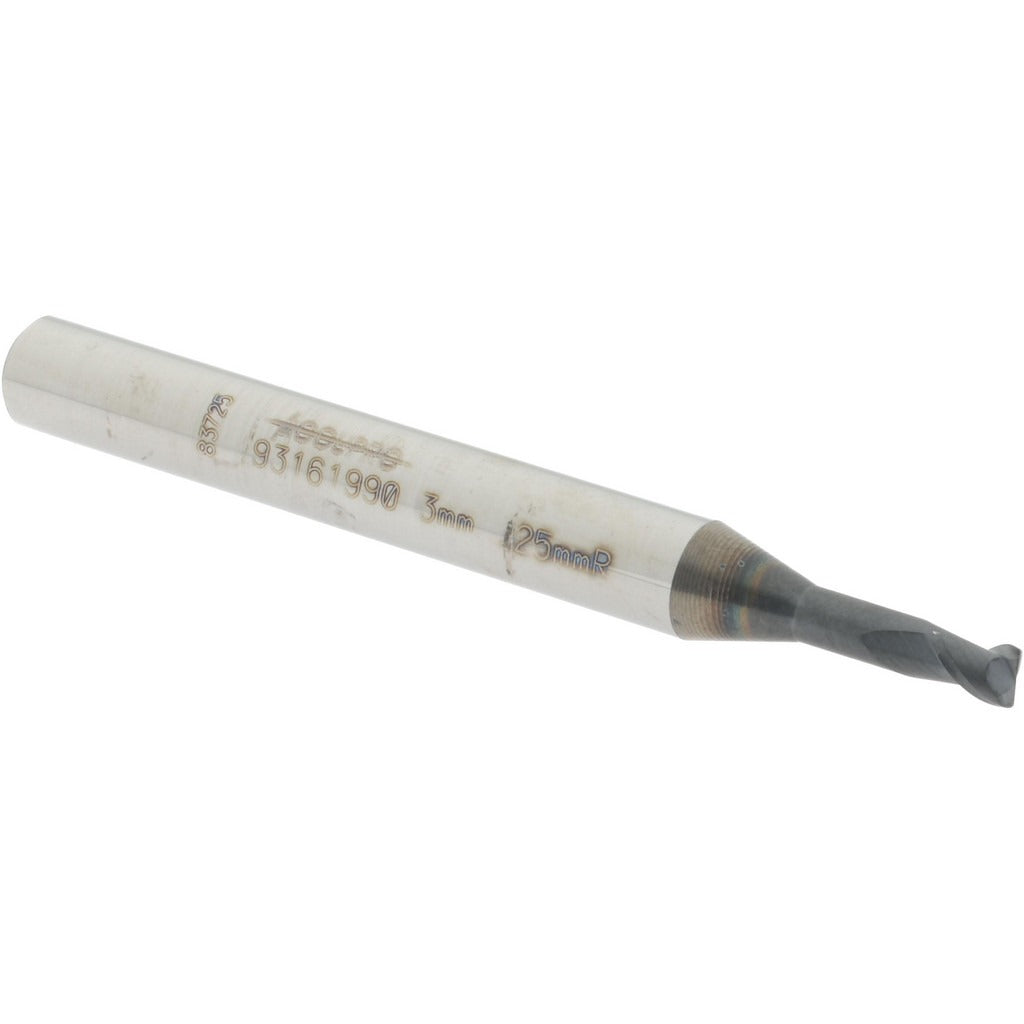

Accupro 12177352 Corner Radius End Mill 3mm 2-flute Carbide

Product Description

The ACCUPRO 12177352 is a solid carbide corner radius end mill designed for high-performance milling in demanding machining applications. It features a 3 mm cutting diameter, a 3 mm length of cut, and a 0.25 mm corner radius that produces a controlled blend between the cutting face and sidewall. The tool is coated with AlTiN (aluminum titanium nitride), a hard, heat-resistant finish well suited to dry machining and high-speed cutting in ferrous and hardened materials. The micrograin carbide substrate contributes to edge sharpness and wear resistance. This end mill is installed by CNC machinists and tool and die professionals on vertical machining centers, CNC routers, and multi-axis platforms.

This end mill is suited for finish and semi-finish milling operations in steel, stainless steel, cast iron, and hardened alloys. The extended reach geometry, with an 8 mm reach length and 57 mm overall length on a 6 mm shank, allows access to deeper features without sacrificing rigidity. The single-end, centercutting design supports plunge entry as well as peripheral and slot milling. The right-hand flute direction and right-hand cutting action are standard for conventional CNC spindle rotation.

Key Features

• AlTiN coating provides high heat resistance for dry and high-speed cutting in ferrous materials
• Micrograin solid carbide substrate delivers edge sharpness and extended tool life
• 0.25 mm corner radius reduces stress concentration at the cutting edge and improves surface finish
• Centercutting design allows direct plunge entry into workpiece material
• Extended reach geometry with 8 mm reach length accommodates deeper cavity and slot work
• 30-degree helix angle balances chip evacuation with cutting stability

Compatibility

Designed for use in CNC machining centers and milling machines accepting a 6 mm straight shank. Suitable for tool holders including ER collet chucks and shrink-fit holders sized for 6 mm shank tooling.

Installation Notes

Installation should be performed by a qualified CNC machinist. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Seat the shank fully in the collet or tool holder to the recommended gauge length, and verify runout with a dial indicator before cutting. Follow the tool manufacturer and machine builder guidelines for speed, feed, and depth-of-cut parameters appropriate to the workpiece material.
