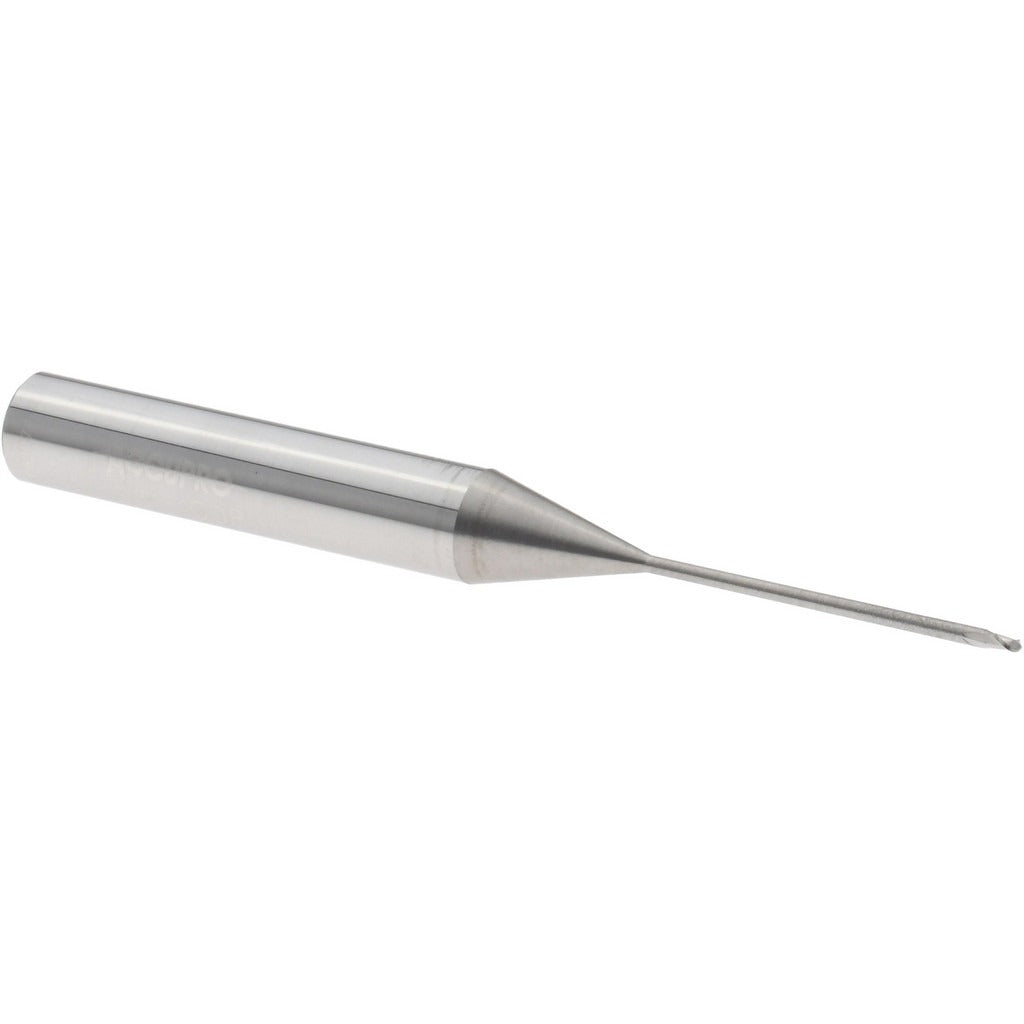

Accupro 12177285 Ball End Mill 1.00mm 2 Flute Carbide

Product Description

The ACCUPRO 12177285 is a single-end ball end mill designed for precision milling operations in metal, composite, and hard-material applications. Built from micrograin solid carbide, this tool delivers rigidity and wear resistance in demanding cutting environments. It features a 1.00 mm mill diameter with a 1.00 mm length of cut, a 30-degree right-hand helix, and an extended-reach neck configuration with a 0.95 mm neck diameter and 20.00 mm reach length. The 6.00 mm shank provides secure toolholder grip. This tool is suited for machinists and tooling professionals working in CNC milling applications that require tight-radius contouring and fine-detail work.

This end mill is used in CNC machining centers for high-precision contouring, profiling, and finishing passes on small-feature geometry. The extended reach and reduced neck diameter make it appropriate for deep-cavity work and die-and-mold applications where standard-length tools cannot access the workzone. The bright, uncoated finish is compatible with a wide range of materials. Right-hand cutting direction is standard for conventional and climb milling on vertical and horizontal machining centers.

Key Features

• 1.00 mm mill diameter with 1.00 mm length of cut for fine-detail milling
• Micrograin solid carbide construction for superior rigidity and edge retention
• 30-degree right-hand helix for efficient chip evacuation
• Extended reach with 0.95 mm neck diameter and 20.00 mm reach length for deep-cavity access
• 6.00 mm shank diameter for secure toolholder engagement
• Bright/uncoated finish suitable for a broad range of workpiece materials

Compatibility

Designed as a standard single-end ball end mill for use in CNC milling machines and machining centers that accept 6.00 mm shank toolholders.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Ensure the machine spindle is fully stopped and the tool path program is verified before mounting. Secure the 6.00 mm shank in a precision collet or end-mill holder to the toolholder manufacturer's specified clamping procedure. Inspect the neck and cutting edge for chips or damage before each use, as micrograin carbide tools of this diameter are sensitive to side loading and improper runout.
