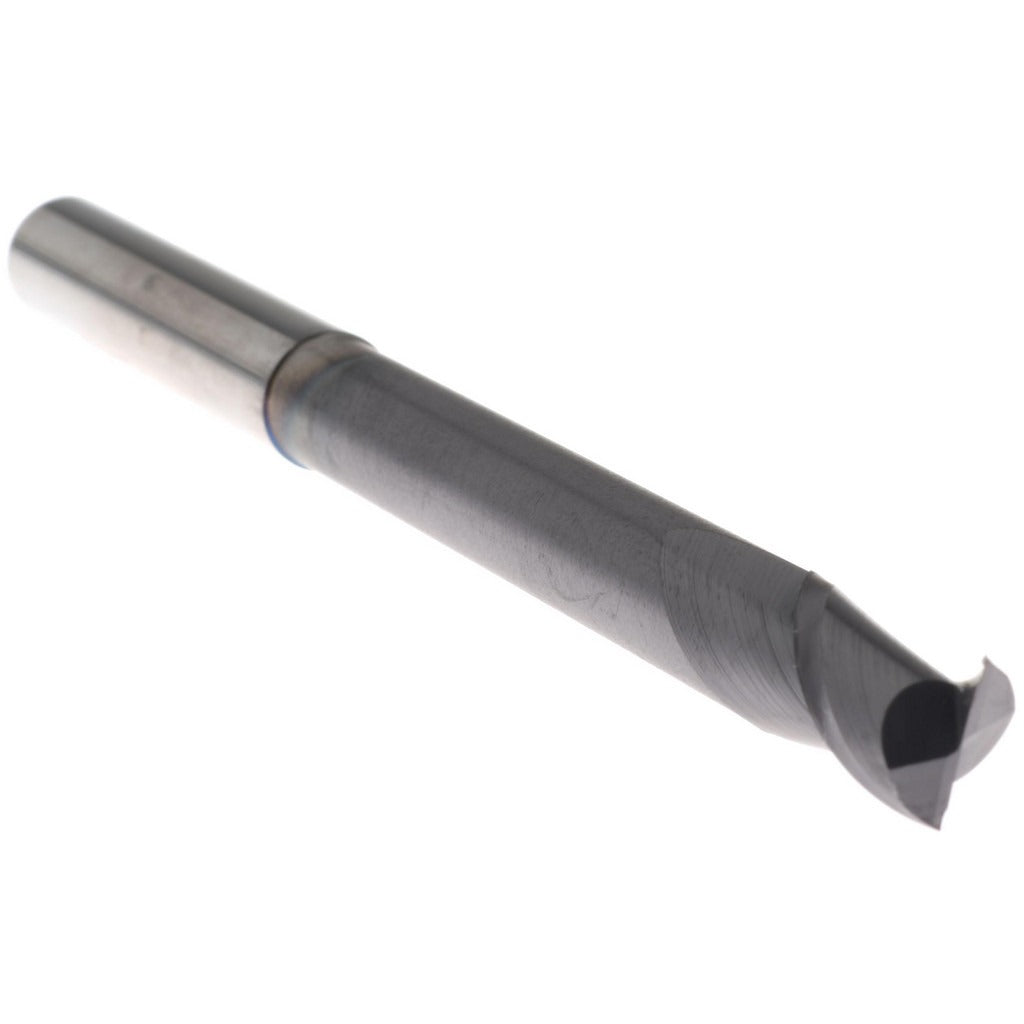

Accupro 12177229 Square End Mill 8mm 2 Flute Altin Carbide

Product Description

The ACCUPRO 12177229 is a solid carbide square end mill designed for high-performance milling in ferrous and non-ferrous materials. At 8 mm in diameter with a 14 mm length of cut and a 100 mm overall length, this single-end tool delivers consistent edge geometry in tight-tolerance applications. The AlTiN coating provides thermal resistance and extended tool life at elevated cutting speeds. The 40-degree helix angle promotes smooth chip evacuation and reduces cutting forces. Micrograin carbide substrate supports the edge hardness required for production milling environments. Licensed machinists and CNC operators are the primary installers of this tooling.

This end mill is suited for vertical machining centers, CNC milling machines, and manual knee mills where an 8 mm shank is required. The extended reach design, with a 64 mm reach length, makes it appropriate for deeper pocket work and profiling operations where standard-reach tooling cannot access the full feature depth. Right-hand cutting and right-hand flute direction follow conventional milling orientation. The centercutting capability allows plunge entry without a pre-drilled pilot hole.

Key Features

• AlTiN coating for elevated temperature resistance and extended tool life in ferrous materials
• Micrograin solid carbide substrate provides edge toughness and wear resistance
• 40-degree helix angle promotes efficient chip evacuation and smooth cutting action
• Extended reach design with 64 mm reach length for deep pocket and profile milling
• Centercutting geometry allows direct plunge entry
• Single-end construction with right-hand cut and right-hand spiral flute direction

Compatibility

Designed for use in standard ER or side-lock collet chucks and end mill holders accepting an 8 mm shank diameter. Suitable for CNC machining centers and manual milling machines running conventional or climb milling operations.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator following the machine tool manufacturer's toolholder torque and runout specifications. Ensure the machine spindle is fully stopped and the machine is in a safe state before inserting or removing tooling. Verify shank engagement depth meets the toolholder manufacturer's minimum insertion requirement. Do not exceed the tool's rated cutting parameters for the workpiece material.
