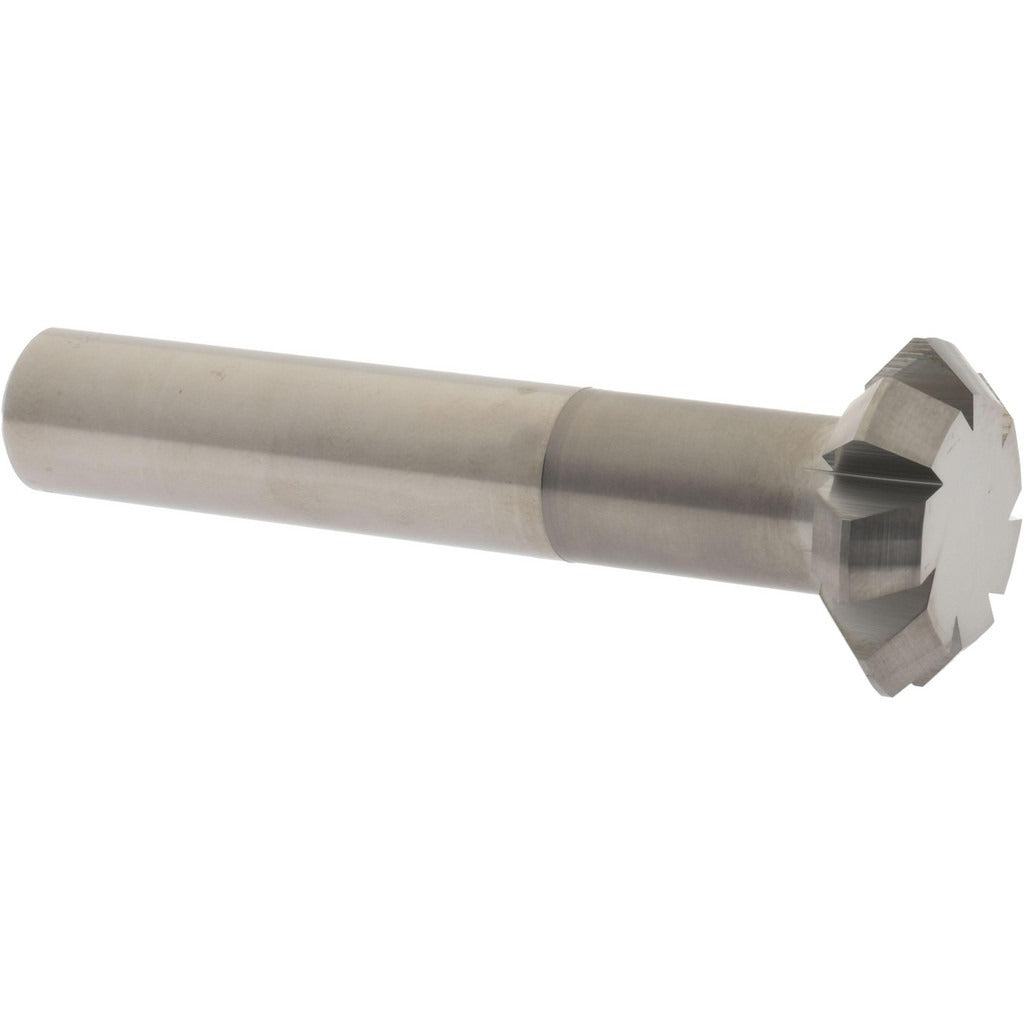

Accupro 02703106 Back Chamfer Tool 1 in 90 Deg Carbide

Product Description

The ACCUPRO 02703106 is a solid carbide back chamfer tool designed for undercutting and chamfering operations on the reverse side of a workpiece without repositioning. Built with a 1 inch cutter head diameter and a 90-degree included angle, it produces clean, consistent back chamfers in a single pass. The 1/2 inch shank diameter and 3 inch overall length make it compatible with standard milling chucks and collet holders found on vertical machining centers and CNC mills. The bright uncoated carbide construction suits a wide range of materials where coating is not required or preferred.

This back chamfer tool is used in precision machining environments including job shops, aerospace component manufacturing, and general metalworking. It is well suited for chamfering holes, ports, and cross-bored features that are inaccessible from the front. The right-hand cutting direction is standard for conventional CNC spindle rotation. Machinists and CNC operators working with cast metal, aluminum, steel, and similar materials will find this tool effective for deburring and chamfering interior edges.

Key Features

• 1 inch cutter head diameter for back chamfering operations
• 90-degree included angle for consistent chamfer geometry
• Solid carbide construction for rigidity and wear resistance
• Bright uncoated finish suitable for dry or general-purpose cutting
• 1/2 inch shank diameter fits standard collets and milling chucks
• Single end design with right-hand cutting direction

Compatibility

Designed for use with standard 1/2 inch collets and milling chucks on CNC machining centers and manual mills with right-hand spindle rotation.

Installation Notes

This tool is installed by a machinist or CNC operator into a compatible 1/2 inch collet or chuck. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Confirm runout and tool projection are within acceptable limits for the operation before engaging the cut. Follow the machine tool manufacturer guidelines and applicable shop safety procedures during setup.
