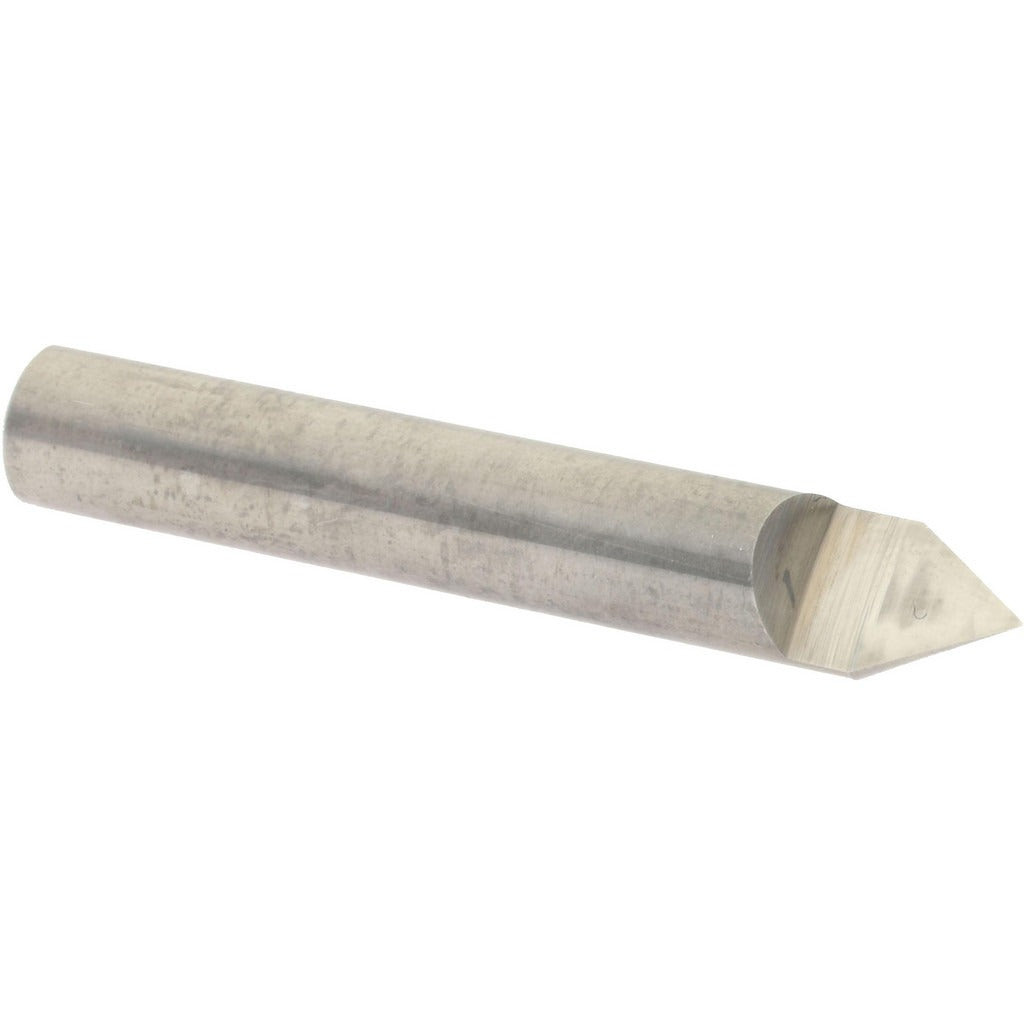

Accupro 01787209 Engraving Cutter 60 Degree 5/16 in

Product Description

The ACCUPRO 01787209 is a solid carbide engraving cutter designed for precision marking, engraving, and V-groove work on metal, plastic, and composite materials. Built with a conical point geometry and a 60-degree included angle, it produces clean, consistent cuts in tight-tolerance applications. The single-flute design promotes efficient chip evacuation and reduces heat buildup during operation. Machined from micrograin solid carbide, this cutter delivers the rigidity and edge retention required for production engraving and detailed part marking on CNC machining centers and manual spindles.

This cutter is suited for engraving operations in machine shops, toolrooms, and production environments where repeatable results are required. The uncoated finish makes it appropriate for use on a broad range of substrates without compatibility concerns tied to specific coating chemistries. With a 5/16-inch shank diameter, it seats in standard collets and tool holders found on most vertical machining centers and engraving machines. Right-hand cutting direction confirms standard spindle rotation setup.

Key Features

• 60-degree included angle conical point for precise V-groove and engraving geometry
• Micrograin solid carbide construction for superior hardness and edge retention
• Single-flute design promotes efficient chip evacuation in engraving applications
• Uncoated finish suitable for a wide range of workpiece materials
• Right-hand cutting direction for standard CNC spindle rotation
• Matching 5/16-inch cutter and shank diameter for balanced, stable tooling setup

Compatibility

Designed as an OEM-style engraving cutter compatible with standard 5/16-inch collets and tool holders on CNC vertical machining centers and manual engraving spindles configured for right-hand cutting.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before installing or removing the cutter. Seat the shank fully in the collet or tool holder and torque to the machine manufacturer's specified value. Verify runout with a dial indicator before beginning the engraving operation to ensure dimensional accuracy.
