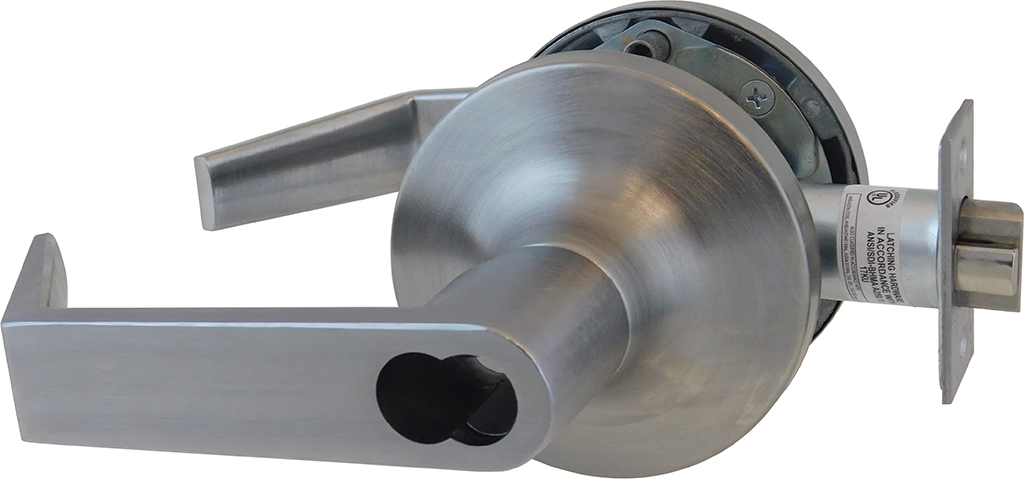

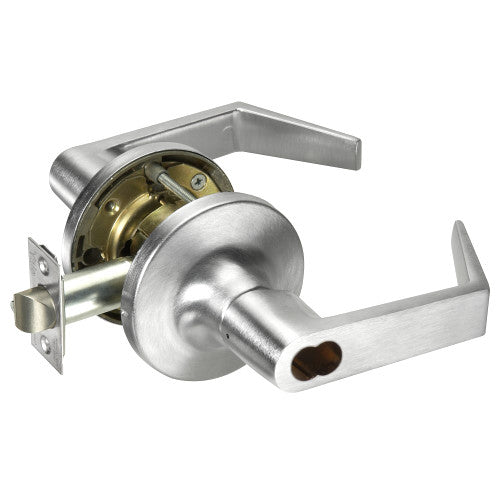

ACCENTRA AU5491LN-1210 LC 626 REX 24V Augusta Lever Lock

Product Description

The Accentra AU5491LN-1210 LC 626 REX 24V Electrified Augusta Lever Lock is a heavy-duty cylindrical lever lock suitable for industrial, commercial, and institutional settings. This lock is fail-secure, meaning that power on unlocks the outside lever while keeping the inside lever always active. It features a request-to-exit function that operates the inside lever handle, triggering the REX switch. The lock is reliable with a free-wheeling lever for added security during power outages.

• Fail Secure: Power activates outside lever; inside lever remains functional.
• Request to Exit: Inside lever handle activates REX switch for monitoring.
• ANSI/BHMA Grade 1 certification for durability.

Product Highlights

This lever lock is ideal for environments requiring secure access control and emergency egress solutions, making it suitable for high-traffic areas.

Product Information

Standard Information

• Manufacturer: Yale ASSA ABLOY
• Brand: ACCENTRA

Technical Specifications

• Model: AU5491LN-1210-24V-626-REX-LC
• Lock Functions: Fail Secure, inside lever always active
• Electrical Specifications: Continuous duty solenoid, 150 mA at 24VDC
• Operating Voltage: 24VDC
• Monitoring Options: Request to Exit for alarm shunting or magnetic lock release
• Grade: ANSI/BHMA Grade 1
• U.L. Listed: Yes
• Warranty: 2-year limited warranty
• Cylinder Type: Yale 6-Pin LFIC Prep Less Core
• Finish: Satin Chrome (626/US26D)
• Fire Rated: 3 Hours
• Strike Number: 497
