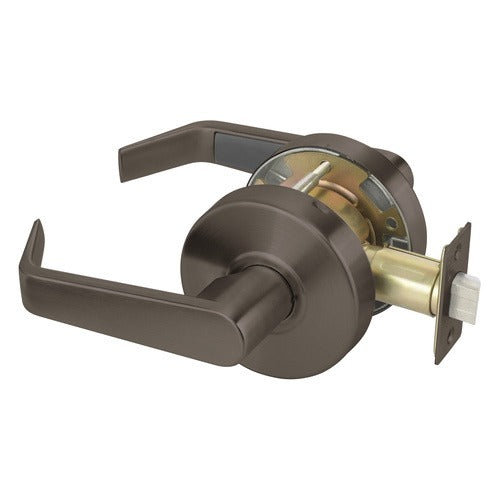

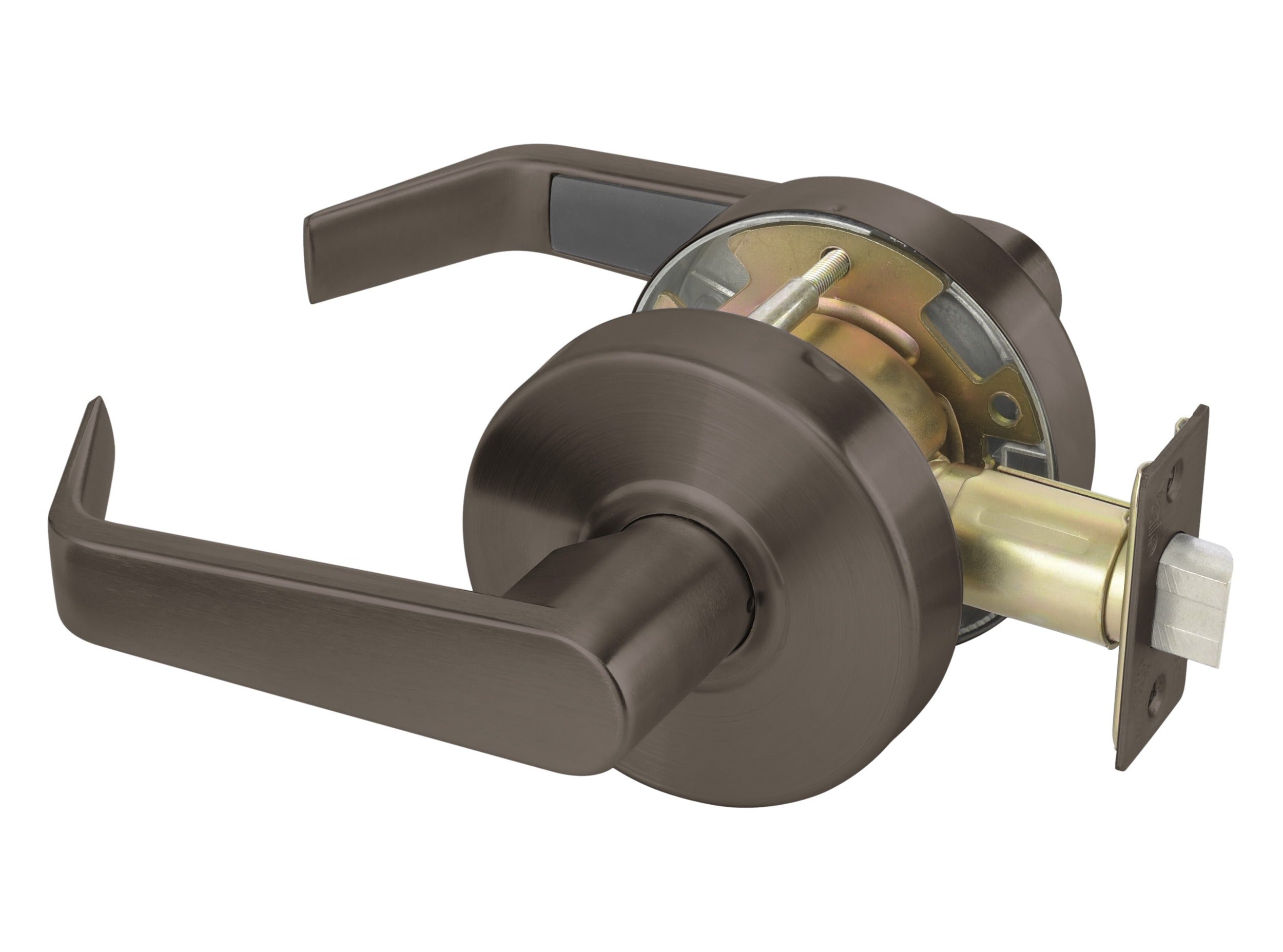

Accentra AU4601LN613E Augusta Passage Lever Grade 2 Lock (Pack 1)

Product Description

Accentra AU4601LN613E is a passage Augusta lever cylindrical lock from the 4600LN series designed for commercial and institutional doors. It meets ANSI/BHMA A156.2 Grade 2 and is UL fire rated up to 3 hours. The non-handed lock adjusts for 1-3/8" to 1-3/4" door thickness, uses an MCP234 spring latch with a 2-3/4" backset, and requires a 2-1/8" crossbore.

• ANSI/BHMA A156.2 Grade 2 construction; UL fire rated up to 3 hours
• Non-handed passage function; adjustable for 1-3/8"–1-3/4" door thickness; universal front fits flat and beveled edges
• MCP234 spring latch with 2-3/4" backset; 2-1/8" crossbore; lever length 4-3/4" and 3-3/8" rose diameter; cast zinc construction

Product Highlights

Grade 2 passage lever lockset, UL fire rated, non-handed and adjustable for standard commercial door thicknesses.

Product Information

Standard Information

• Brand: ACCENTRA
• Manufacturer Part Number: AU4601LN613E
• Country of Origin: United States
