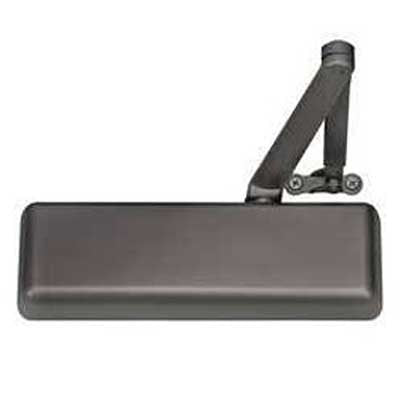

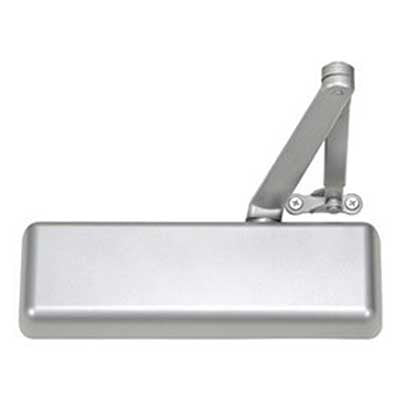

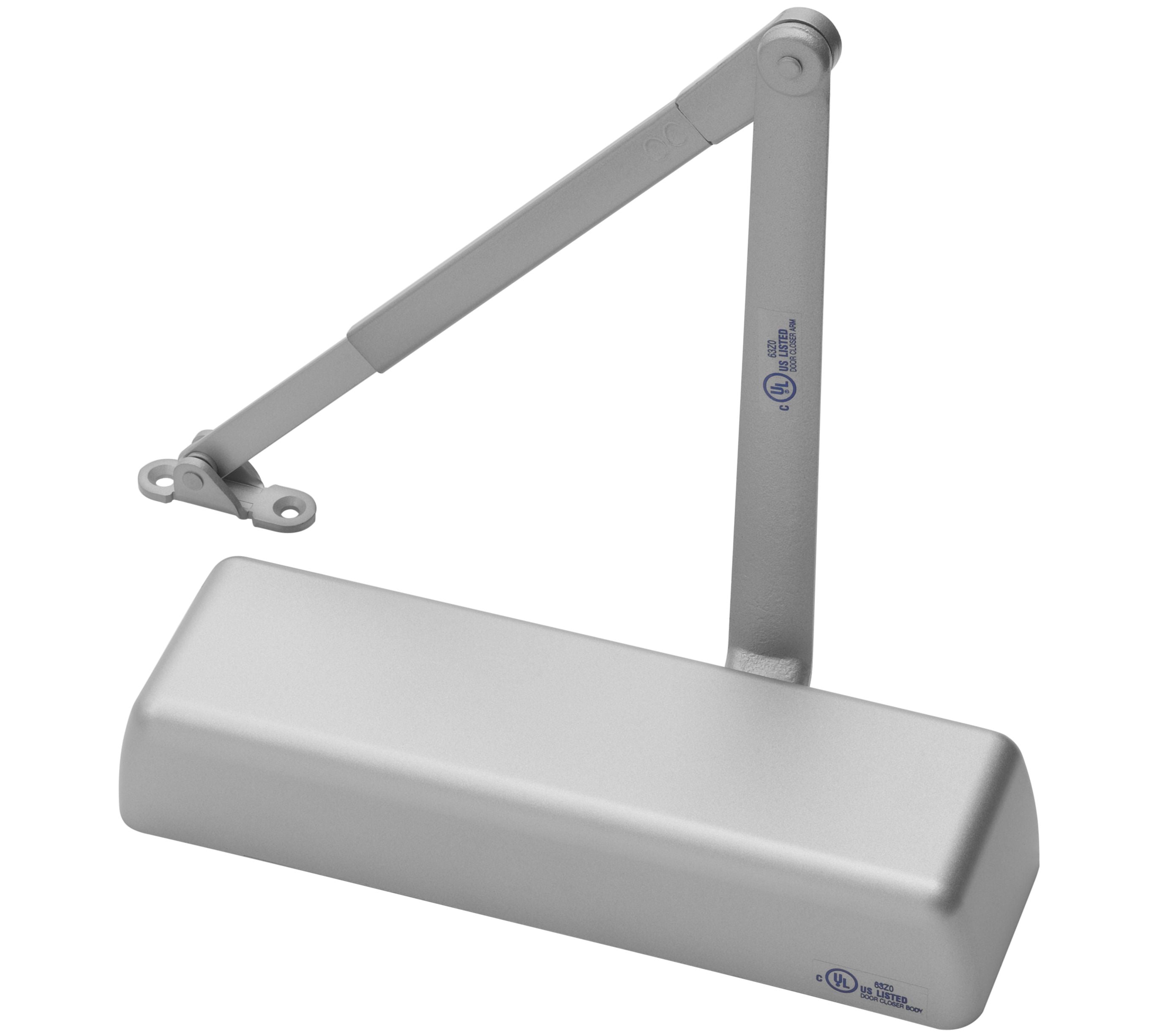

Accentra 5801689 5801 Door Closer Size 1-6 (085230)

Brand: ACCENTRA
SKU: 5801689
Availability: In Stock

Ships same day if ordered by 12 pm
$196.65
$196.65
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Accentra 5801689 is a 5801 series surface-mounted door closer constructed of cast iron, offering adjustable spring power (sizes 1-6) and tri-packed mounting for regular, parallel, or top jamb installations. It uses rack-and-pinion operation with adjustable backcheck, closing, and latching speed valves. The non-handed unit includes a full plastic cover and sleeve nuts and meets ANSI/BHMA Grade 1.

  • Adjustable spring sizes 1-6 for variable door weight and power settings
  • Tri-packed surface mounting: regular, parallel, or top jamb
  • Rack-and-pinion operation with adjustable backcheck, closing, and latching speed valves; non-handed design

Product Highlights

Surface-mounted cast iron door closer; tri-mount; adjustable size 1-6; ANSI/BHMA Grade 1; full plastic cover and included sleeve nuts

Product Information

Standard Information

  • Brand: ACCENTRA
  • Manufacturer Part Number: 5801689
Technical Specifications
Brand
Accentra
MPN
5801689
Model
5801
Series
5800 Series
Supplier Part Number
085230
Function
Door closer
Hold Open
Options available for hold-open and heavy-duty arm configurations
Size
Adjustable spring sizes 1-6
Material
Cast iron
Mounting Type
Surface mounted; tri-packed for regular, parallel, or top jamb mounting
Handing
Non-handed
Operation
Rack and pinion
Adjustments
Backcheck valve, closing speed valve, latching speed valve, spring power adjustment
Cover
Full plastic cover
Included Hardware
Sleeve nuts included
Dimensions
12.25 x 3.5 x 2.25 inches (length x width/projection x height) (with cover)
Finish
Aluminum (689) painted option
Certifications
ANSI/BHMA Grade 1 Certified
