Abz Manufacturing 400397812LBFV 397-812 Butterfly Valve 4 IN

Product Description

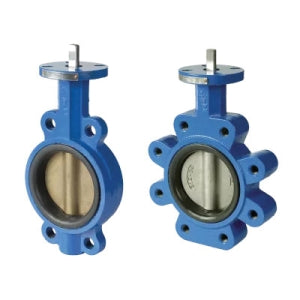

The ABZ MANUFACTURING 400397812LBFV 397-812 butterfly valve is a general-purpose, resilient-seated valve suitable for dead-end service. It features a one-piece body in a full-lug style. Constructed with corrosion-resistant materials, it increases working life and simplifies field maintenance. The valve has a 4 IN nominal size and a pressure rating of 200 PSI.

• General purpose resilient-seated butterfly valves
• Suitable for dead-end service
• One-piece bodies in wafer or full-lug styles

Product Highlights

The ABZ 397-812 butterfly valve features corrosion-resistant materials, a locking lever handle, and is suitable for dead-end service.

Product Information

Standard Information

• Brand: ABZ MANUFACTURING
• Manufacturer Part Number: 400397812LBFV

Technical Specifications

• Series/Model: Model 397-812
• Nominal Size: 4 IN
• Pressure Rating: 200 PSI
• Body Material: Ductile Iron
• Operator Type: Locking Lever Handle
• Stem Material: 416 Stainless Steel
• Trim Material: 316 Stainless Steel Disc
• Packing Material: Buna-N Stem
• Seat Material: Viton
• Industry Standards: API 609 Category A Design, API 598 Tested, ASME B16.1/B16.2 And MSS SP67
• Height: 12-1/2 IN
• Other Physical Dimension: 3/4-10 UNC Thread, 7-1/2 IN Bolt Circle Diameter
• Additional Specifications: Number Of Holes: 8
