Abz Manufacturing 300397818LBFV 3 397-818 Butterfly Valve

Product Description

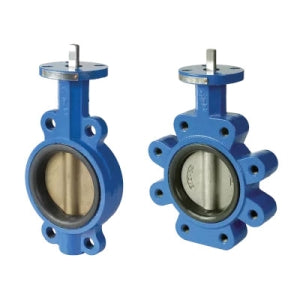

The ABZ MANUFACTURING 300397818LBFV 3 397-818 Butterfly Valve is a general-purpose resilient-seated butterfly valve suitable for dead-end service. It features a one-piece body in a wafer or full-lug style and is available in multiple configurations with corrosion-resistant materials. The valve has a 3 IN nominal size and a pressure rating of 200 PSI. The body is made of ductile iron, with a locking lever handle operator.

• General purpose resilient-seated butterfly valves
• Suitable for dead-end service
• One-piece bodies in wafer or full-lug styles

Product Highlights

This butterfly valve is designed for durability and simplified field maintenance, meeting API, ASME, and MSS standards.

Product Information

Standard Information

• Brand: ABZ MANUFACTURING
• Manufacturer Part Number: 300397818LBFV

Technical Specifications

• Series/Model: Model 397-818
• Nominal Size: 3 IN
• Pressure Rating: 200 PSI
• Body Material: Ductile Iron
• Operator Type: Locking Lever Handle
• Stem Material: 416 Stainless Steel
• Trim Material: 316 Stainless Steel Disc
• Packing Material: Buna-N Stem
• Seat Material: Buna-N
• Industry Standards: API 609 Category A Design, API 598 Tested, ASME B16.1/B16.2 And MSS SP67
• Height: 10-3/4 IN
• Lead Free: No
• Other Physical Dimension: 5/8-11 UNC Thread, 6 IN Bolt Circle Diameter
• Additional Specifications: Number Of Holes: 4
