Abz Manufacturing 300397812LBFV 3 397-812 Butterfly Valve

Product Description

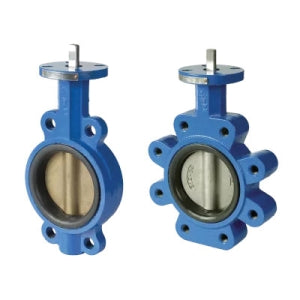

The ABZ MANUFACTURING 300397812LBFV 396/397 product series features general purpose resilient-seated butterfly valves especially suitable for dead-end service. These valves have one-piece bodies in wafer or full-lug styles and are available in multiple configurations with corrosion-resistant materials. The ductile iron body has a 200 PSI pressure rating and a locking lever handle operator. Simplifies field maintenance and increases working life.

• General purpose resilient-seated butterfly valves
• Suitable for dead-end service
• One-piece bodies in wafer or full-lug styles

Product Highlights

General purpose resilient-seated butterfly valves suitable for dead-end service with corrosion-resistant materials.

Product Information

Standard Information

• Brand: ABZ MANUFACTURING
• Manufacturer Part Number: 300397812LBFV

Technical Specifications

• Series/Model: Model 397-812
• Nominal Size: 3 IN
• Pressure Rating: 200 PSI
• Body Material: Ductile Iron
• Operator Type: Locking Lever Handle
• Stem Material: 416 Stainless Steel
• Trim Material: 316 Stainless Steel Disc
• Packing Material: Buna-N Stem
• Seat Material: Viton
• Industry Standards: API 609 Category A Design, API 598 Tested, ASME B16.1/B16.2 And MSS SP67
• Height: 10-3/4 IN
• Lead Free: No
• Other Physical Dimension: 5/8-11 UNC Thread, 6 IN Bolt Circle Diameter
• Additional Specifications: Number Of Holes: 4
