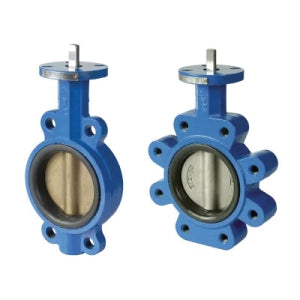

Abz Manufacturing 250397815LBFV 2-1/2 397-815 Butterfly Valve

Product Description

The ABZ MANUFACTURING 250397815LBFV 2-1/2 397-815 Butterfly Valve is a general-purpose, resilient-seated butterfly valve suitable for dead-end service. It features one-piece bodies in wafer or full-lug styles and is available in multiple configurations with corrosion-resistant materials. The valve has a pressure rating of 200 PSI and adheres to API 609 Category A Design, API 598 Tested, ASME B16.1/B16.2, and MSS SP67 industry standards.

• Suitable for dead-end service
• One-piece bodies in wafer or full-lug styles
• Available in multiple configurations

Product Highlights

This butterfly valve features corrosion-resistant materials, increasing working life and simplifying field maintenance.

Product Information

Standard Information

• Brand: ABZ MANUFACTURING
• Manufacturer Part Number: 250397815LBFV

Technical Specifications

• Nominal Size: 2-1/2 IN
• Pressure Rating: 200 PSI
• Body Material: Ductile Iron
• Operator Type: Locking Lever Handle
• Stem Material: 416 Stainless Steel
• Trim Material: 316 Stainless Steel Disc
• Packing Material: Buna-N Stem
• Seat Material: EPDM
• Industry Standards: API 609 Category A Design, API 598 Tested, ASME B16.1/B16.2 And MSS SP67
• Lead Free: No
• Other Physical Dimension: 5/8-11 UNC Thread, 5-1/2 IN Bolt Circle Diameter
• Additional Specifications: Number Of Holes: 4
