Abz Manufacturing 1000397812GBFV 10 in Butterfly Valve

Product Description

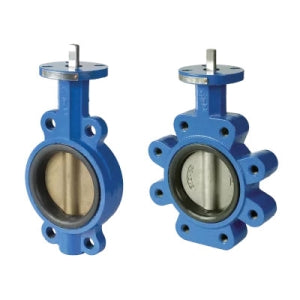

The ABZ MANUFACTURING 1000397812GBFV butterfly valve is a general-purpose, resilient-seated valve suitable for dead-end service. It features a one-piece body in a full-lug style and corrosion-resistant materials for increased working life and simplified maintenance. The valve has a 10 IN nominal size and a pressure rating of 200 PSI. It conforms to API 609 Category A Design, API 598 Tested, ASME B16.1/B16.2 And MSS SP67 industry standards.

• General purpose resilient-seated butterfly valves
• Suitable for dead-end service
• One-piece bodies in wafer or full-lug styles

Product Highlights

This ABZ butterfly valve offers reliable performance with corrosion-resistant materials and simplified maintenance.

Product Information

Standard Information

• Brand: ABZ MANUFACTURING
• Manufacturer Part Number: 1000397812GBFV

Technical Specifications

• Series/Model: Model 397-812
• Nominal Size: 10 IN
• Pressure Rating: 200 PSI
• Body Material: Ductile Iron
• Operator Type: Gear Operator
• Stem Material: 416 Stainless Steel
• Trim Material: 316 Stainless Steel Disc
• Packing Material: Buna-N Stem
• Seat Material: Viton
• Industry Standards: API 609 Category A Design, API 598 Tested, ASME B16.1/B16.2 And MSS SP67
• Height: 20.44 IN
• Lead Free: No
• Other Physical Dimension: 7/8-9 UNC Thread, 17 IN Bolt Circle Diameter
• Additional Specifications: Number Of Holes: 12, Keyway: 1/4 IN
