Abh Manufacturing PT1000US28 Power Transfer 24V DC 1 A

Product Description

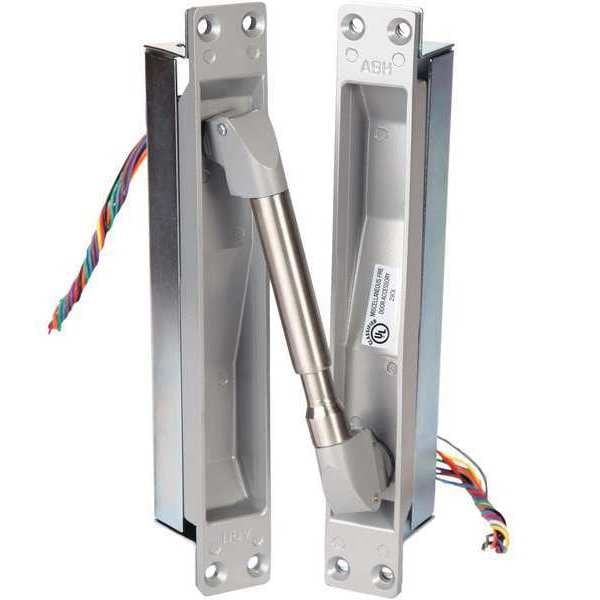

The ABH MANUFACTURING PT1000US28 power transfer unit supplies power to door alarm components. It mounts along the edge of the door and inside the door frame so that they are concealed when the door is closed. It is designed for use with electrified locks.

• Constructed with metal and finished in satin chrome.

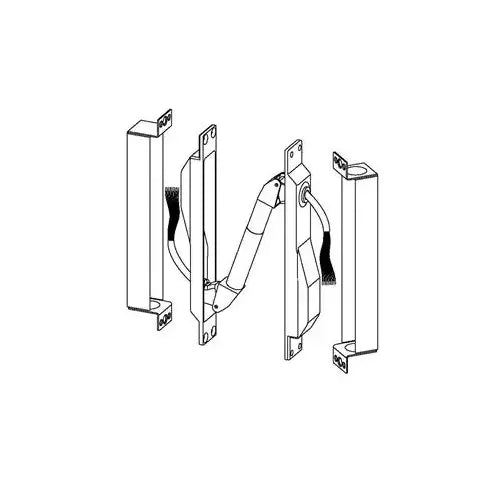

• Includes back box and fasteners for wood, steel, or aluminum doors and frames.
• Features 10 wires, 24 AWG.

Product Highlights

This power transfer is UL and ULC listed and suitable for high abuse/heavy traffic situations.

Product Information

Standard Information

• Brand: ABH MANUFACTURING
• Manufacturer Part Number: PT1000US28
• Country of Origin: USA

Technical Specifications

• Product Type: Power Transfer
• Voltage: 24V DC
• Current: 1 A
• Material: Metal
• Finish: Satin Chrome
• Overall Height: 9 in
• Overall Length: 1-3/4 in
• Overall Width: 1-1/4 in
• Number of Wires: 10
• Door Thickness - Maximum: 1-3/4 in
• Wire Size: 24 AWG
• Includes: Back Box; Fasteners
• Standards: UL Listed; ULC Listed
• Sub-brand: Power Transfer
• Manufacturer Part Number: PT1000 - US28
• Brand: ABH
• Type: Lock
• Model: PT1000-US28
• MPN: PT1000US28, PT1000-US28
• Features: Locking
• Category: Building Materials & Supplies
• Alternate Part Number-1: 148452
• Wire Gauge: 24
• Color Code: 628/US28
• Function: Door Cord
• Fire Rated: Yes
• Finish Description: Satin Aluminum
• Product Height: 9-1/16 Inch
• Product Width: 1-1/4 Inch
• ADA Compliant: No
• Finish Family: Aluminum
• Function Description: Transferring Electrical Power and Data From the Frame to the Door in a Secure and Discreet Manner
• Series: Parts/Accessories
• Manufacturer Parent: ABH Manufacturing
• Sub-Series: ABH-PT1000
• Height: 1.75
• Length: 10.5
• Width: 4.25
• Finish code: US28
• MFR #: PT1000 - US28
• Item: Power Transfer
• For Use With: Electrified Locks
• Decibels: 0 dB
• Amps: 1 A
