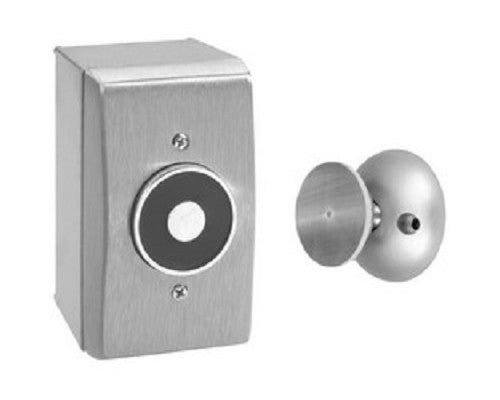

Abh Manufacturing 2300 US28 Electromagnetic Door Holder Wall Mount Surface (2-3/4 inches x 3 inches x 4-5/8 inches)

Product Description

Abh Manufacturing 2300 US28 is an electromagnetic door holder, wall-mount surface unit intended as an electromagnet component for door holding applications. The tri-voltage design supports flexible installation and the unit measures 2-3/4" width x 3" depth x 4-5/8" height with a total projection of 4-5/8" from wall to door face. The holder includes a complimentary 1" extension and a positive release button to alleviate residual magnetism. Finish: US28 satin aluminum.

• Tri-voltage operation for flexible stocking and installation
• Dimensions: 2-3/4" W x 3" D x 4-5/8" H; total projection 4-5/8"
• Includes one 1" extension and positive release button to reduce residual magnetism

Product Highlights

Surface-mounted electromagnetic door holder with tri-voltage operation, 4-5/8 inch projection, and a positive release button; satin aluminum (US28) finish.

Product Information

Standard Information

• Brand: ABH MANUFACTURING
• Manufacturer Part Number: 2300 US28

Technical Specifications

• Brand: Abh Manufacturing
• Manufacturer Part Number: 2300 US28
• Product Type: Electromagnet component (door holder)
• Mounting Type: Wall mount, surface
• Dimensions: 2-3/4" W x 3" D x 4-5/8" H
• Total Projection: 4-5/8 inches (from wall to face of door)
• Finish: US28 satin aluminum (painted)
• Voltage: Tri-voltage (multi-voltage)
• Included Accessories: One 1-inch extension
• Feature: Positive release button to reduce residual magnetism
• UNSPSC Code: 46171500
• Sales Category: Electromagnetic lock/holder accessories
• Manufacturer Part # (Alternate): CS269579
