Abbott Workholding Products TG12MDS1 Soft Lathe Chuck Jaw

Product Description

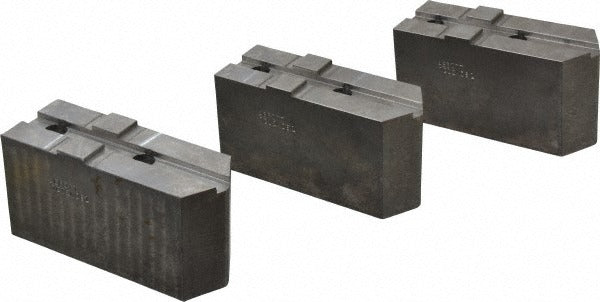

The ABBOTT WORKHOLDING PRODUCTS TG12MDS1 is a soft lathe chuck jaw designed for tongue and groove chuck interfaces. Machined from 1018 steel, this square-profile jaw mounts on chucks up to 12 inches in diameter and is sold as a set of three. The jaw measures 5.5 inches overall length, 3 inches overall height, and 2 inches overall width. With a tongue width of 0.75 inches and a groove width of 0.5 inches, it mates precisely to compatible tongue and groove chuck bodies. The mount hole centers are spaced 2.5 inches apart, accepting 0.5-inch fasteners. Machinists and tool room operators use these soft jaws when a job requires custom-bored or contoured gripping surfaces.

This jaw set is suited for manual and CNC lathe applications where repeatable workholding and jaw reboring are required. The 1018 steel construction provides a machinable base that can be bored, faced, or profiled to grip irregular, delicate, or finished workpieces without marring. Typical use cases include turning operations on production lathes in job shops, manufacturing cells, and maintenance machine shops. The three-jaw configuration is standard for self-centering chuck setups on lathes with 12-inch chuck capacity.

Key Features

• Tongue and groove interface fits chuck bodies with 0.5-inch groove width
• 1018 steel construction allows field boring and profiling to custom grip geometries
• Square jaw shape provides a stable, flat seating surface for reboring
• Mount hole centers spaced 2.5 inches apart to match standard chuck bolt patterns
• Tongue width of 0.75 inches ensures positive lateral registration in the chuck slot
• Sold as a set of three jaws to complete a full chuck installation

Compatibility

Designed for use with tongue and groove style lathe chucks up to 12 inches maximum compatible chuck diameter. Verify chuck bolt pattern, groove width, and tongue dimensions against chuck manufacturer specifications before ordering.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Power down and lock out the lathe spindle before removing or installing chuck jaws. Verify that fastener size and mount hole spacing match the chuck body before securing jaws. After installation and any reboring operations, inspect jaw seating and fastener torque before returning the chuck to service.
