Abbott Rubber T24005002 Micro-fuel Line Hose 7/64 in 100 Ft

Product Description

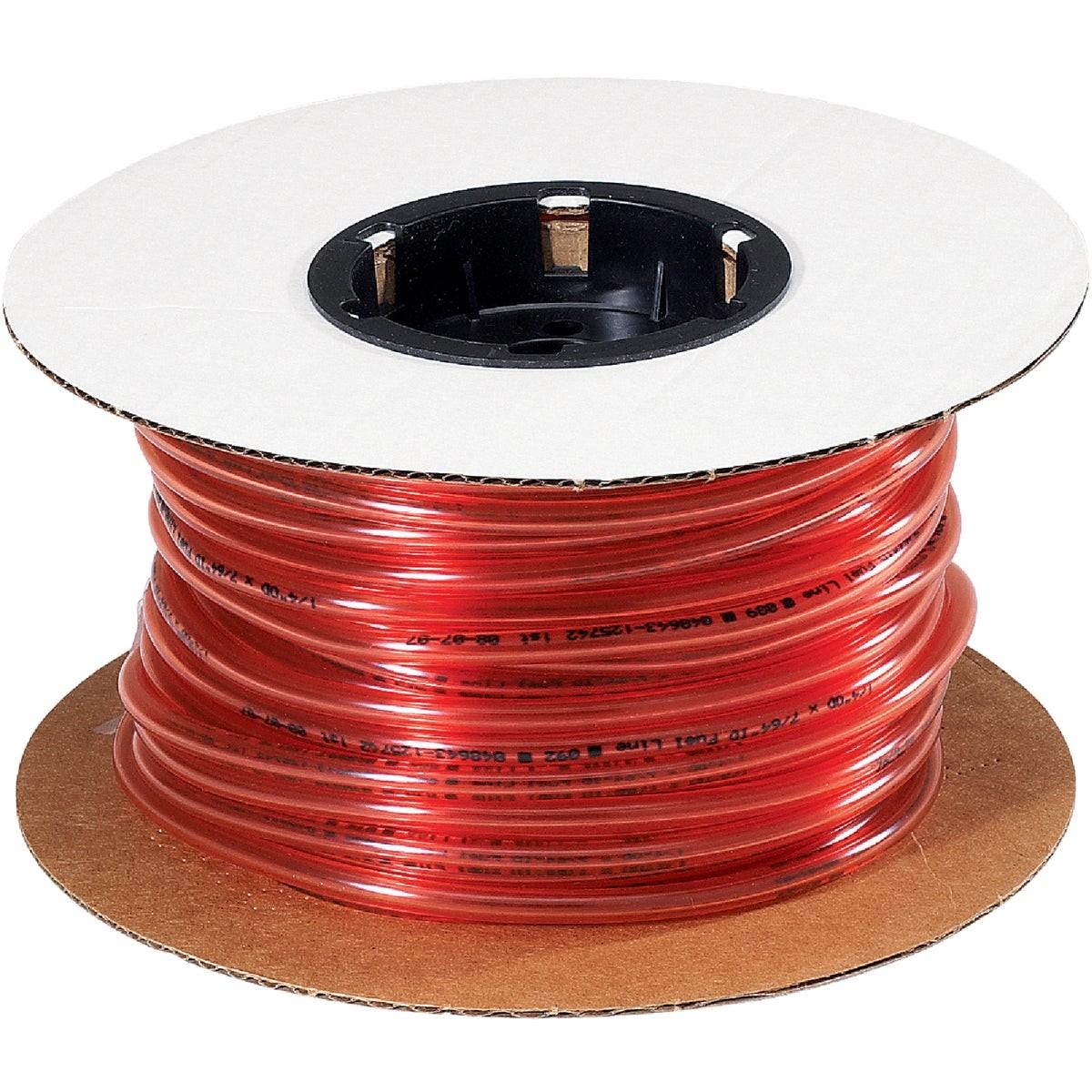

The ABBOTT RUBBER T24005002 is an industrial-grade micro-fuel line hose designed for small tool fuel delivery applications. Constructed from a thermoplastic blend, this hose offers a 7/64 inch inner diameter and is rated for a maximum working pressure of 125 psi with a maximum temperature of 200 degrees F. The clear, see-through design allows for quick visual inspection of fuel flow without removing the hose from service. Sold in a 100-foot bulk roll, this hose suits service shops, equipment rental operations, and field technicians who need to cut custom-length fuel lines on the job.

This micro-fuel line is intended for small engine and small tool fuel system service, including chainsaws, string trimmers, leaf blowers, and similar handheld power equipment. The thermoplastic construction resists common fuel types used in small two-stroke and four-stroke engines. The 100-foot bulk roll format is suited for service shops that regularly replace fuel lines across multiple units, reducing the need for repeated restocking orders.

Key Features

• Industrial-grade thermoplastic blend construction for fuel compatibility
• See-through design allows visual fuel flow inspection without disassembly
• 125 psi maximum working pressure for small tool fuel system demands
• Maximum service temperature of 200 degrees F
• 7/64 inch inner diameter sized for small engine fuel system fittings
• 100-foot bulk roll allows job-site cutting to custom lengths

Compatibility

Designed as an OEM-style replacement fuel line for small handheld power tools and small engine equipment requiring a 7/64 inch inner diameter micro-fuel hose.

Installation Notes

Installation is typically performed by small engine technicians or qualified service personnel. Before replacing the fuel line, drain the fuel tank completely and work in a well-ventilated area away from ignition sources. Cut the hose to the required length using a sharp utility knife for a clean, square end, and ensure all fittings seat fully before returning the equipment to service.

Technical Specifications

• Inner Diameter: 7/64 inches
• Length: 100 feet
• Maximum Working Pressure: 125 psi
• Maximum Temperature: 200 degrees F
• Material: Thermoplastic blend
• Weight: 2.6 pounds
• Sold As: Bulk roll

Standard Information

• Brand: ABBOTT RUBBER
• Manufacturer Part Number: T24005002
