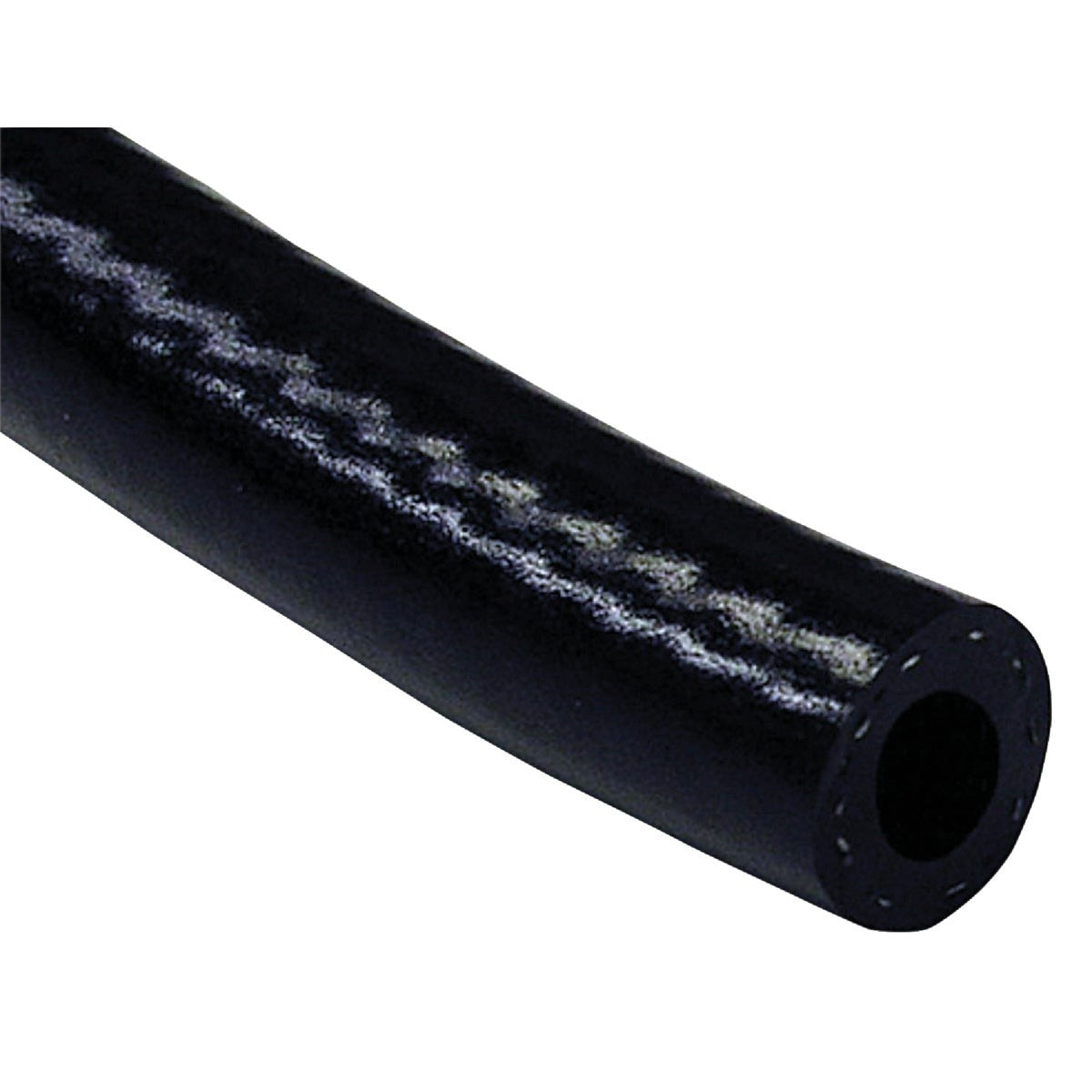

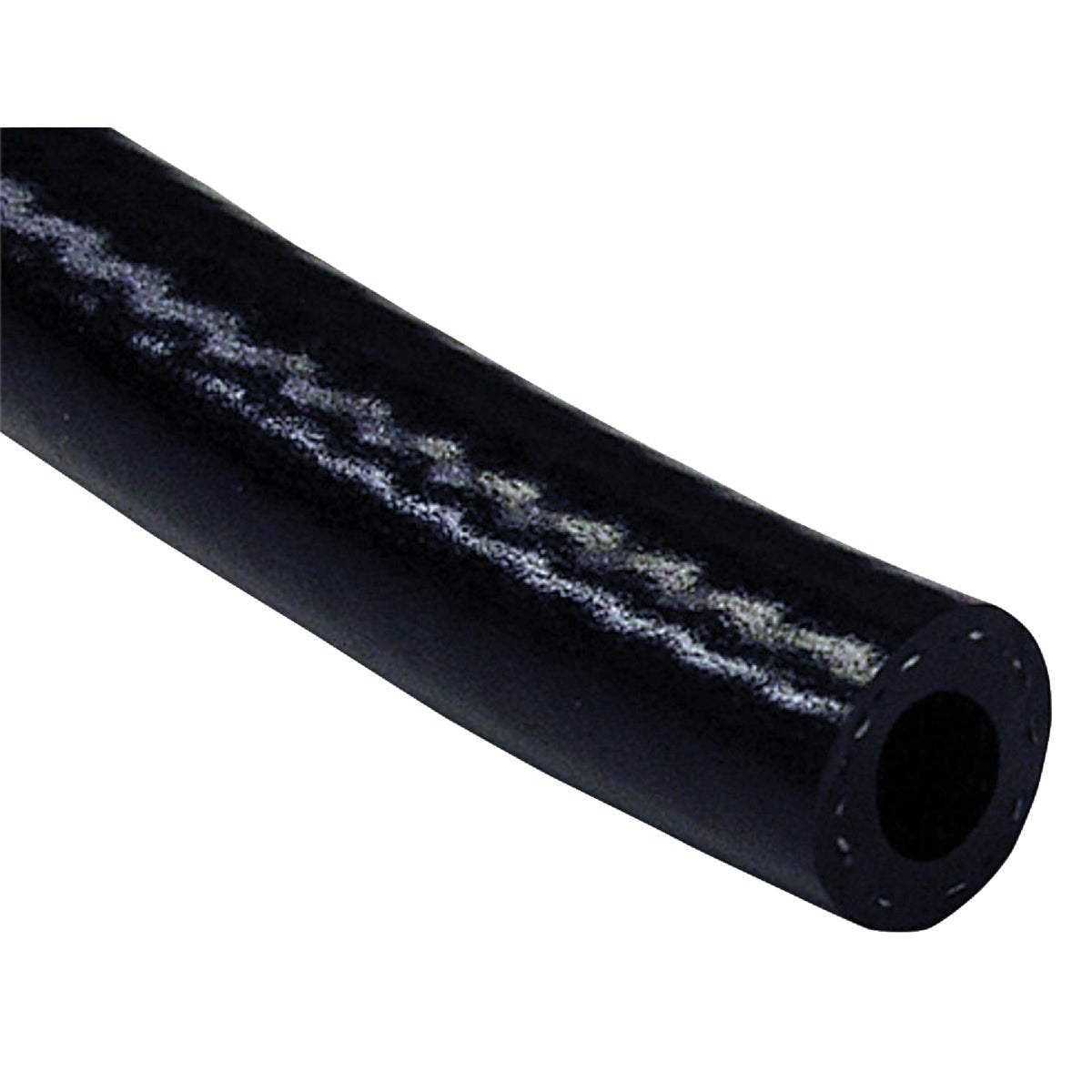

Abbott Rubber T22005003 Fuel Line Hose 5/16 in Id 100 Ft

Product Description

The ABBOTT RUBBER T22005003 is a PVC general purpose fuel line hose designed for use with petroleum-based products in non-engine-bay service applications. Sold as a 100-foot bulk spool, this hose carries an inner diameter of 5/16 inches and is rated for pressures between 175 and 250 psi with a maximum operating temperature of 150 degrees F. The construction provides oil and grease resistance, making it a reliable choice for fuel transfer lines in light-duty fluid handling setups. It is not approved for under-hood automotive applications. Plumbers, equipment technicians, and service pros handling petroleum fluid systems are the typical installers.

This hose is suited for general purpose fuel line runs in residential and light commercial settings where petroleum-based fluids are transferred outside of high-heat environments. Common applications include fuel supply lines to generators, outdoor power equipment, and stationary engines where routing keeps the hose away from direct engine heat. The bulk spool format allows installers to cut to the required length on the job, reducing waste and inventory overhead.

Key Features

• PVC construction with oil and grease resistance for petroleum-based fluid service
• Pressure rating of 175 to 250 psi suitable for low- to medium-pressure fuel line runs
• Maximum operating temperature of 150 degrees F
• 5/16 inch inner diameter sized for standard small-engine and equipment fuel fittings
• 100-foot bulk spool allows field cutting to exact length
• Not rated for under-hood or high-heat engine compartment use

Compatibility

Designed for general purpose fuel line applications with petroleum-based products in non-under-hood service environments. No specific OEM equipment or system compatibility data was provided by the manufacturer for this SKU.

Installation Notes

Installation should be performed by a qualified technician familiar with fuel system service and applicable local codes. Shut off all fuel supply valves and relieve line pressure before cutting or connecting hose. Secure all connections with appropriate clamps rated for fuel service, and inspect for leaks before returning the system to operation. This hose must not be routed through or installed in under-hood or high-temperature zones.

Technical Specifications

• Inner Diameter: 5/16 inches
• Length: 100 feet
• Pressure Rating: 175 to 250 psi
• Maximum Temperature: 150 degrees F
• Material: PVC
• Package Type: Bulk spool
• Weight: 8.65 pounds

Standard Information

• Brand: ABBOTT RUBBER
• Manufacturer Part Number: T22005003
