Abb xt5hu360bbyn000xxx Circuit Breaker 600A 480V 3P

Product Description

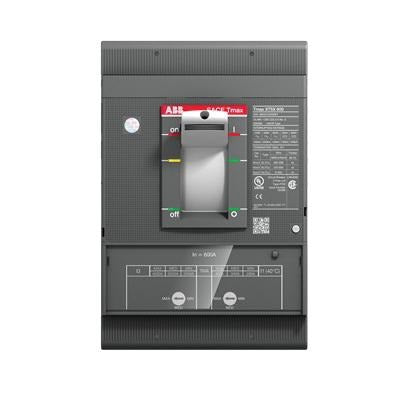

The ABB xt5hu360bbyn000xxx is a 3-pole molded case circuit breaker from the Tmax XT Series, rated at 600 amps and 480 volts with a 65 kA interrupting capacity. It uses a TMA (thermal-magnetic adjustable) trip mechanism with a trip range of 600 to 6000 amps, allowing field adjustment to match the protected load. The breaker accepts copper or aluminum conductors from 2/0 AWG to 500 kcmil at both the line and load side lug terminals. Electricians and electrical contractors install this device in commercial and industrial distribution panels where high-capacity branch or feeder protection is required.

This breaker is specified as a Loadside Circuit Breaker (LSC) for use in the ReliaGear neXT Power Panelboard system. It is suited for three-phase commercial and industrial applications operating on 50 or 60 Hz systems at up to 480 volts. The fixed-frame (FF) configuration and compact footprint make it appropriate for installations where panel space is a limiting factor.

Key Features

• 600 amp continuous rating with TMA trip adjustable from 600 to 6000 amps
• 65 kA symmetrical interrupting rating for high fault-current environments
• Accepts copper and aluminum conductors, 2/0 AWG to 500 kcmil
• Line and load side lug terminals for flexible wiring configurations
• 3-pole design rated at 480 volts, compatible with 50 and 60 Hz systems
• Fixed-frame construction within the compact Tmax XT platform

Compatibility

Specified as an LSC for the ReliaGear neXT Power Panelboard. Verify panelboard documentation for exact breaker slot and mounting requirements before installation.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lockout/tagout the panel before installing or servicing this breaker. Confirm conductor sizing, termination torque, and lug compatibility with project drawings and the manufacturer documentation. Do not exceed the listed conductor range of 2/0 AWG to 500 kcmil at line or load terminals.
