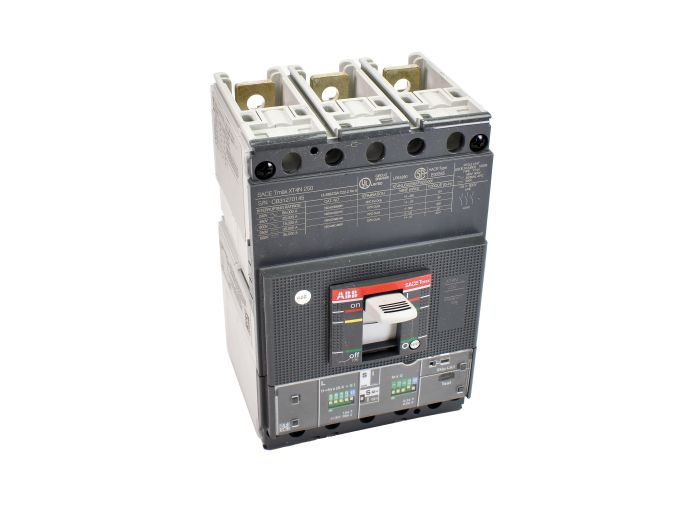

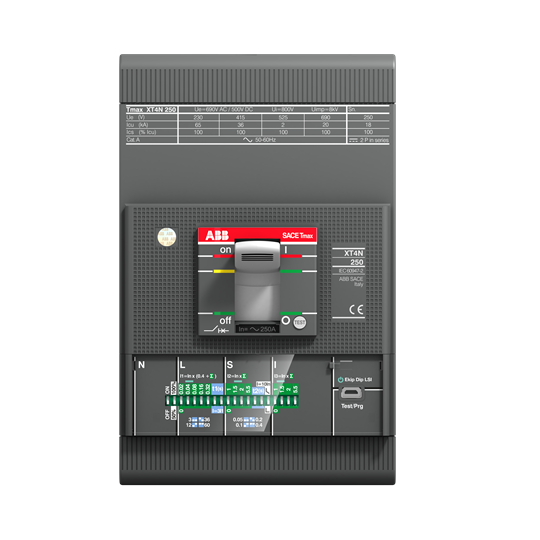

Abb XT4NU3225EFF000XXX XT4 250A Frame 3P w/Electronic LS/I Trip Unit 225 Amp

Product Description

The ABB XT4NU3225EFF000XXX is a robust circuit breaker from the Tmax XT series, offering flexibility for system designs. Rated at 225A and 600V, it handles both AC and DC current. It features an electronic LS/I trip unit and a breaking capacity of 25kA. The Tmax XT series is globally certified with UL/CSA/IEC approvals.

• Current Rating: 225 A
• Voltage Range: Up to 600V AC
• Breaking Capacity: 25 kA

Product Highlights

This 3-pole circuit breaker is suitable for various applications, providing reliable circuit protection with its electronic trip unit and high breaking capacity.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: XT4NU3225EFF000XXX

Technical Specifications

• UNSPSC Code: 39120000
• Actuator Type: Toggle
• Alternate Mfr Part Number: 1SDA075362R1
• Brand: ABB
• Breaking Capacity: 25 kA
• Connection: Bolt connection
• Construction: Built-in device fixed built-in technique
• Current Rating: 225 A
• IP Rating: IP20
• Manufacturer Part Number: XT4NU3225EFF000XXX
• Mounting Orientation: Front side
• Number of Poles: 3 Pole
• Manufacturer: ABB
• Product Series: Tmax XT
• Description: Circuit Breaker, 3-P, 225A, 600V, Ekip LS/I Trip Unit, 1SDA075362R1 , UL
• Poles: 3
• Max Voltage: 600 VAC
• Trip Unit: Electronic
• Electronic Trip Unit: LS/I
• Mounting: Panel
• Neutral Pole: No
• 100% Rated: No
• Terminal Type: Bolt-On
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: Optional
• UL Standard: 489
• Approvals: CSA, IEC, UL
• Net Weight: 4.405 lbs
• Int. Rating: 65kA
• MRO / OEM: Panelboard MRO
• System Voltage: 240Vac (Y/D)
• Trip Unit Required: Ekip Dip LS/I
• 80% / 100% Rated: 80 %
• Voltage Range: 240 to 600 V
