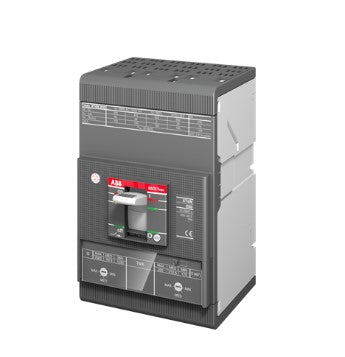

Abb XT4HU3225AFJ000XXX 225A 3 Pole Molded Case Circuit Breaker

Product Description

The ABB XT4HU3225AFJ000XXX is a 225A molded case circuit breaker from the ABB SACE Tmax XT4 family, delivering fixed thermal and magnetic protection for heavy-duty industrial loads. It features a 65kAIC rating at 480VAC for reliable fault clearing. Designed for unit mounting, this MCCB integrates into ReliaGear neXT panelboards, switchboards, and Tmax XT enclosures.

• Fixed thermal protection
• Fixed magnetic protection
• 225A current rating
• 65kAIC rating at 480VAC
• Unit mounting
• Exact replacement for legacy T4H225 breakers
• Current-limiting design

Product Highlights

This circuit breaker is HACR rated and current limiting, suitable for diverse applications with fixed thermal and magnetic trip functions.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: XT4HU3225AFJ000XXX

Technical Specifications

• Brand: ABB
• Series: XT4
• Amperage: 225A
• Voltage: 240VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 600VDC
• Poles: 3
• Phase: 3
• AIC Rating: 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 50kA @ 250VDC, 65kA @ 600VDC
• Mounting Style: Unit Mount
• Terminal Type: Lugs
• For Use With: ReliaGear neXT Panelboards, Switchboards, SACE Tmax XT Panelboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 4 AWG - 300 kcmil
• Max Wire: 300 kcmil
• Min Wire: 4 AWG
• Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Motor Operator, Rotary Handle
• Accessories: Lugs
• Standards: CSA C22.2 No. 5, IEC 60947-2, UL 489
• Approval: CCC, CE, CSA, cULus, IEC, KEMA, UL
• Temp Rating: -25C to 70C
• Construction Features: HACR Rated, Current Limiting, Reverse Feed
• Part No.: XT4HU3225AFJ000XXX
• Category: Molded Case Circuit Breaker
