Abb XT4HE3225BFF000XXX xt4h 250 tma 225-2250 3p f f

Product Description

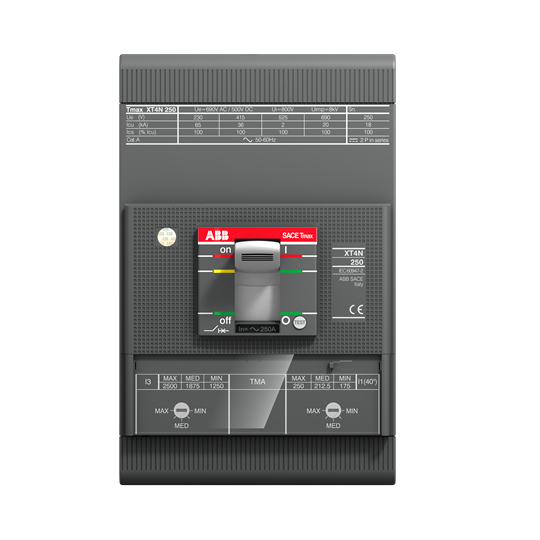

The ABB XT4HE3225BFF000XXX is a TMAX XT4H 250 fixed three-pole circuit breaker with front terminals and thermomagnetic release TMA R 225 I3=1125...2250 A. It is designed for power distribution applications. The circuit breaker has a rated voltage of 690 V and a rated current of 225 A.

• Fixed three-pole configuration with front terminals
• Thermomagnetic release TMA R 225 I3=1125...2250 A
• Suitable for power distribution

Product Highlights

The ABB XT4HE3225BFF000XXX circuit breaker is reliable for power distribution with a thermomagnetic release.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: XT4HE3225BFF000XXX

Technical Specifications

• Category: SACE Tmax XT
• Trip Unit: TMA
• Product Main Type: SACE Tmax XT
• Frame size: XT4
• Extended Product Type: XT4H 250 TMA 225-2250 3p F F
• Standards: IEC
• Rated Voltage (V): 690 V
• Rated Current: 225 A
• Interruption Rating: H
• Number of Poles: 3
• Approvals: Certification IEC
• EAN: 8015644022501
• Minimum Order Quantity: 1 piece
• Customs Tariff Number: 85362090
• Order Code US and Canada: XT4HE3225BFF000XXX
• Product Net Width: 105 mm
• Product Net Height: 160 mm
• Product Net Depth / Length: 82.5 mm
• Product Net Weight: 2.05 kg
• Package Level 1 Units: box 1 piece
• Package Level 1 Width: 145 mm
• Package Level 1 Height: 210 mm
• Package Level 1 Depth / Length: 168 mm
• Package Level 1 Gross Weight: 2.5 kg
• Package Level 1 EAN: 8015644022501
• RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
• Circuit Breaker Type to be Associated: Power Distribution
• Current Type: AC/DC
• Electrical Durability: 120 cycles per hour8000 cycle
• Mechanical Durability: Nr. Operations 240 cycles per hourNr. Operations 25000 cycle
• Opening Time: CB with SOR 15 msCB with UVR 15 ms
• Order Multiple: 1 piece
• Product Name: Moulded Case Circuit Breaker
• Product Type: CB
• Rated Frequency (f): 50 / 60 Hz
• Rated Impulse Withstand Voltage (Uimp): 8 kV
• Rated Instantaneous Short-Circuit Current Setting (Ii): 1125 ’¢‚¬ ’¢‚¬¡‚¬¾¢2250 A
• Rated Insulation Voltage (Ui): 1000 V
• Rated Operational Voltage: 690 V AC500 V DC
• Rated Service Short-Circuit Breaking Capacity (Ics): (220 V AC) 100 kA(230 V AC) 100 kA(240 V AC) 100 kA(380 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(525 V AC) 45 kA(690 V AC) 15 kA(250 V DC) 2 Poles in Series 70 kA(500 V DC) 2 Poles in Series 70 kA(500 V DC) 3 Poles in Series 70 kA
• Rated Ultimate Short-Circuit Breaking Capacity (Icu): (220 V AC) 100 kA(230 V AC) 100 kA(240 V AC) 100 kA(380 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(525 V AC) 45 kA(690 V AC) 15 kA(250 V DC) 2 Poles in Series 70 kA(500 V DC) 2 Poles in Series 70 kA(500 V DC) 3 Poles in Series 70 kA
• Rated Uninterrupted Current (Iu): 250 A
• Release: TMA
• Release Type: TM
• Setting Range: 157.5...225 A
• Short-Circuit Performance Level: H
• Sub-type: XT4
• Terminal Connection Type: Fixed Circuit-Breakers
• Version: F
• Rated Voltage: 690 V
• Rated Current (In): 225 A
