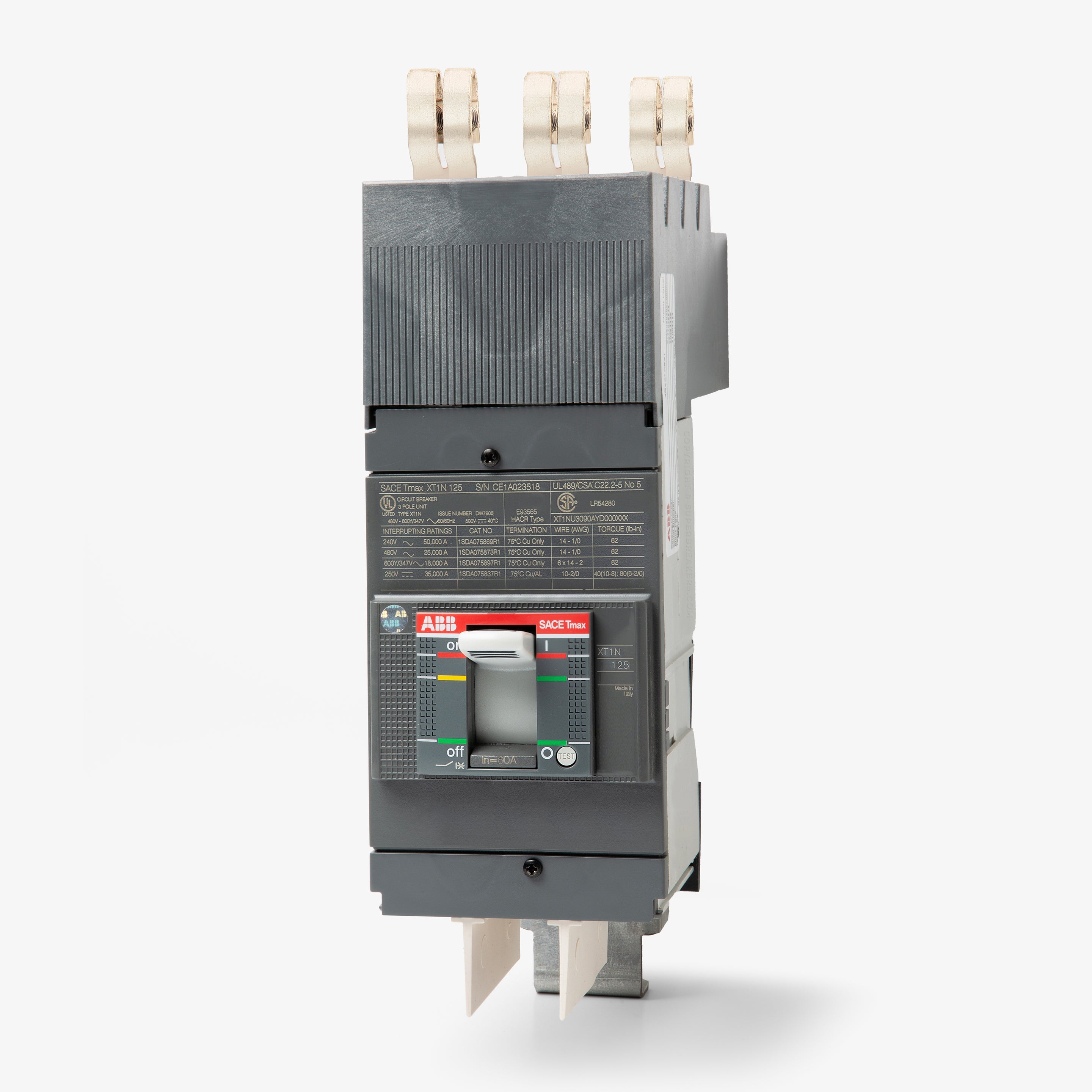

Abb XT1NU3015AYD000XXX 15A 3 Pole Molded Case Circuit Breaker

Product Description

The ABB XT1NU3015AYD000XXX is a 15-amp molded case breaker designed for ReliaGear neXT panelboards and SB switchboards. It includes factory-supplied line side connectors and load side lugs. Functioning as a precise substitute for the discontinued T1N015TW model, it features a fixed thermal-magnetic trip mechanism and a compact XT1 frame footprint.

• Designed for ReliaGear neXT panelboards and SB switchboards
• Includes factory-supplied line side connectors and load side lugs
• Functions as a precise substitute for the discontinued T1N015TW model

Product Highlights

This three-phase component mounts into compatible ABB enclosures, delivering 50kA interrupting capacity at 240VAC and 25kA at 480VAC for commercial systems.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: XT1NU3015AYD000XXX

Technical Specifications

• Brand: ABB
• Series: XT1
• Amperage: 15A
• Voltage: 240VAC, 480VAC, 600Y/347VAC, 250VDC
• Poles: 3
• Phase: 3
• AIC Rating: 50kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 35kA @ 250VDC
• Mounting Style: Unit Mount
• Terminal Type: Lugs
• For Use With: ABB ReliaGear neXT Panelboards, ABB ReliaGear SB Switchboards, ABB SACE Tmax XT Enclosures
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 10 AWG - 2/0 AWG (Cu/Al)
• Max Wire: 2/0 AWG
• Min Wire: 10 AWG
• Available Options: Auxiliary Switch, Shunt Trip, Undervoltage Release, Padlock Attachment
• Accessories: Line Side Connector (1SDA114241R1), Load Side Lugs (1SDA075837R1)
• Standards: CSA C22.2 No. 5, IEC 60947-2, UL 489
• Approval: CCC, CE, CSA, EAC, IEC, KEMA, RINA, UL, VDE
• Temp Rating: -25C to 70C
• Construction Features: HACR Rated, Double Insulated, Reverse Feed
• Part Number: XT1NU3015AYD000XXX
• Family: SACE Tmax XT
• Manufacturer: ABB
• Type: XT1
• Subcategory: Molded Case
• Protection: Thermal Magnetic Fixed (TMF)
• Certifications: UL Standard
• Frame Type: XT1
• Load Side: KIT FC CuAl 10-2/0 AWG (1SDA075837R1)
• Line Side: Line Side Connector (1SDA114241R1)
• Key Lock: no key lock
• Maximum Amperage: 15 A
• AIC Ratings: 25kA@480V | 18kA@600V
