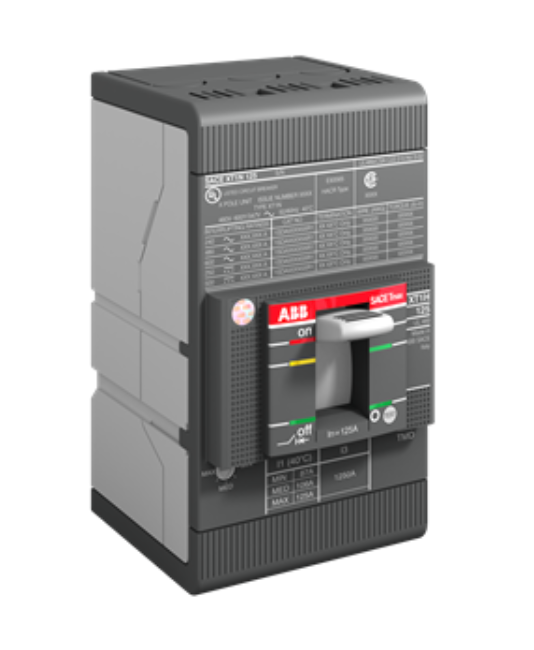

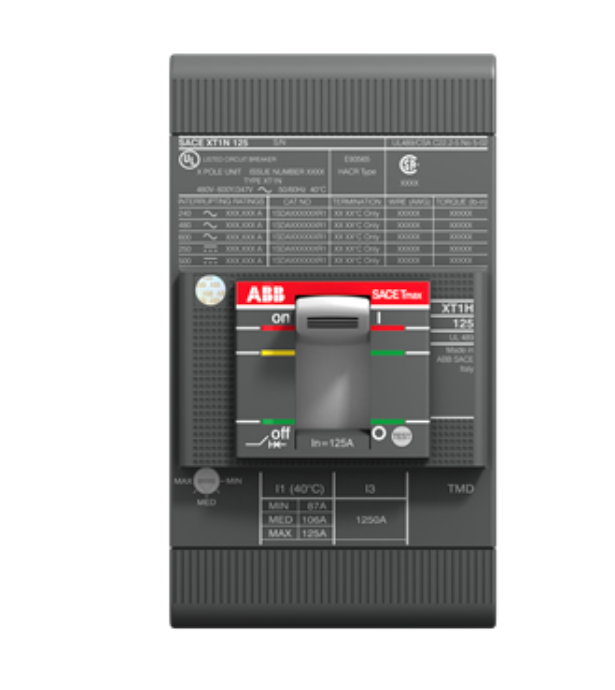

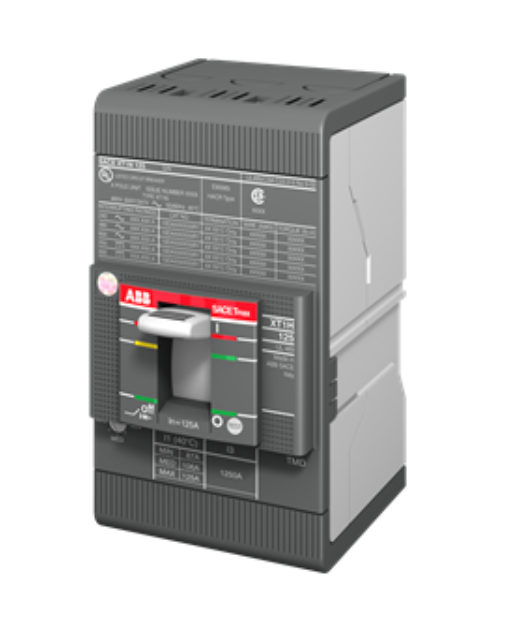

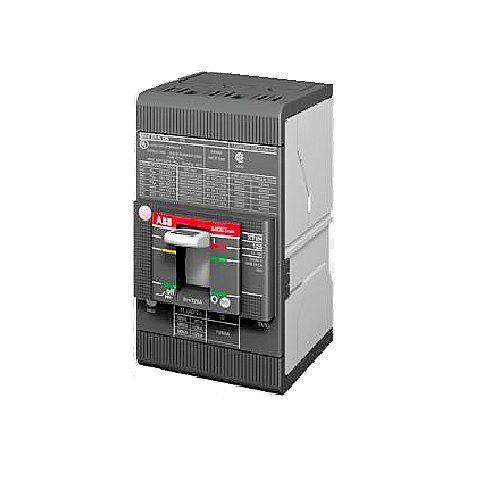

Abb xt1hu3110ayd000xxx molded case circuit breaker 110 amp

Product Description

The ABB XT1HU3110AYD000XXX is a molded case circuit breaker rated at 110A, designed with 3 poles and 600V AC. This XT1 frame breaker features a thermal magnetic trip unit and front flat terminals. It provides reliable motor control and branch circuit protection in industrial applications.

• Rated at 110A and 600V AC
• Features a thermal magnetic trip unit
• Designed for motor control and branch circuit protection

Product Highlights

ABB XT1HU3110AYD000XXX molded case circuit breaker with thermal magnetic trip, ideal for industrial applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: XT1HU3110AYD000XXX
• Country of Origin: China

Technical Specifications

• Part Number: XT1HU3110AYD000XXX
• Pole: 3.0
• Amp: 110.0
• Volt: 600.0
• Phase: 3.0
• Type: XT1
• Protection: Thermal Magnetic
• AIC Ratings: 65kA@480V | 25kA@600V
• Manufacturer: ABB
• Amperage: 110
• Voltage Type: AC
• Poles: 3
• Frame Type: XT1
• Brand: ABB
• Country of Origin: China
• UPC: Does not apply
• Category: Circuit Breaker
• Item Subcategory: Molded Case
• Family: SACE Tmax XT
• Connection: Bolt-On
• Standards: UL, CSA
• Certification: UL, CSA
• Wire Size: AWG 10 to AWG 2/0, Cu/Al
