Abb xt1hu3100ayd000xxx 100A 3-pole Mccb

Product Description

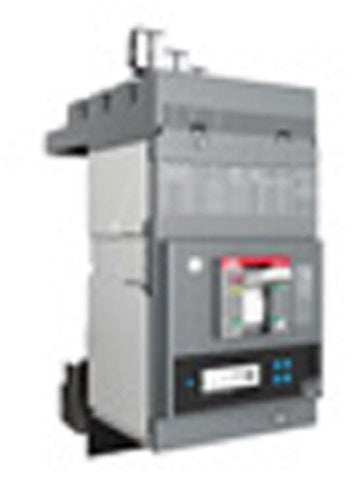

The ABB xt1hu3100ayd000xxx is a 100-amp, 3-pole molded case circuit breaker (MCCB) built on the ABB XT1 frame platform. It uses a fixed thermal-magnetic trip unit rated for Long-Time and Instantaneous (LI) overcurrent protection, delivering interrupting capacities of 100 kA at 240 VAC and 65 kA at 480 VAC. The breaker ships with line side connectors and load side lugs already included, making it ready for immediate installation. Electricians and electrical contractors install this device in commercial and industrial power distribution applications where reliable, high-interrupting-capacity branch circuit protection is required.

The xt1hu3100ayd000xxx is rated for use in ABB ReliaGear neXT panelboards, ABB ReliaGear SB switchboards, and ABB SACE Tmax XT enclosures. It is unit-mount style and accepts wire gauge from 10 AWG to 2/0 AWG in copper or aluminum conductors. The breaker also serves as a direct substitute for the legacy T1H100TW, simplifying retrofit and upgrade projects in existing ABB distribution equipment.

Key Features

• Fixed thermal-magnetic trip with LI (Long-Time, Instantaneous) overcurrent protection
• High interrupting capacity: 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600Y/347 VAC, 50 kA at 250 VDC
• Accepts 10 AWG to 2/0 AWG copper or aluminum conductors
• HACR rated, double insulated, and reverse feed capable
• Line side connectors and load side lugs included for immediate installation
• Optional accessories available: auxiliary switch, shunt trip, undervoltage release, padlock attachment

Compatibility

Designed for use with ABB ReliaGear neXT panelboards, ABB ReliaGear SB switchboards, and ABB SACE Tmax XT enclosures. Serves as a replacement for the legacy T1H100TW molded case circuit breaker.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the panel or switchboard before installing or replacing the breaker. Verify wire gauge and conductor material are within the rated range of 10 AWG to 2/0 AWG copper or aluminum before terminating at the lugs. Optional accessories such as shunt trip or auxiliary switch must be installed per ABB installation instructions before the breaker is energized.

Technical Specifications

• Amperage: 100A
• Voltage: 240 VAC, 480 VAC, 600Y/347 VAC, 250 VDC
• Poles: 3
• Phase: 3
• AIC Rating: 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600Y/347 VAC, 50 kA at 250 VDC
• Trip Technology: Thermal Magnetic
• Trip Function: Long-Time, Instantaneous (LI)
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Mounting Style: Unit Mount
• Terminal Type: Lugs
• Wire Gauge: 10 AWG to 2/0 AWG (Cu/Al)
• Temperature Rating: -25 degrees C to 70 degrees C
• Standards: CSA C22.2 No. 5, IEC 60947-2, UL 489
• Approvals: CE, CSA, IEC, UL
• Construction Features: HACR Rated, Double Insulated, Reverse Feed, High Interrupting Capacity
• Series: XT1

Standard Information

• Brand: ABB
• Manufacturer Part Number: xt1hu3100ayd000xxx
