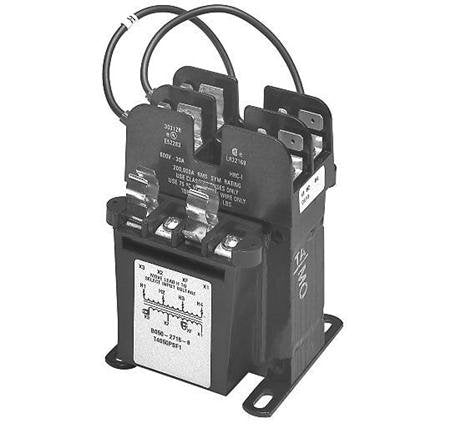

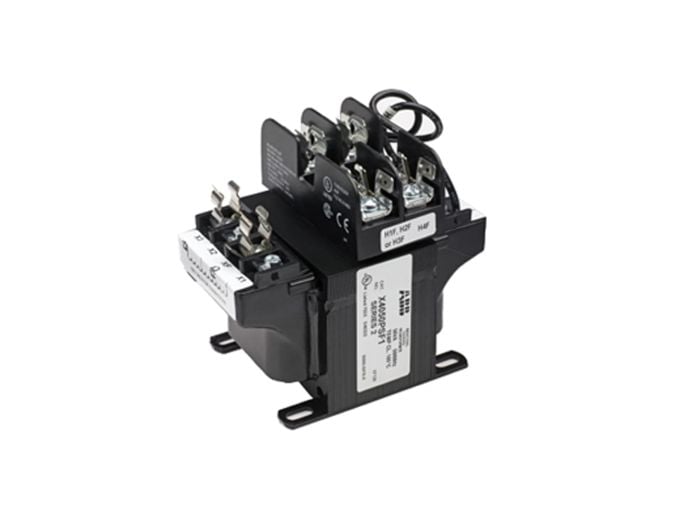

Abb X4100Psf1 100 Va Rating 4 Terminal Transformer

Product Description

The ABB X4100PSF1 is a 100 VA rating 4 terminal transformer with 4.17/0.87 output amps with a primary fuse block and a secondary fuse clip. ABB industrial control transformers provide stepped down voltages for machine tool control devices and industrial control panels. They are made with high quality silicon steel laminations to minimize core loss and optimize performance.

• Control Circuit Transformer with Primary and Secondary Fuse Blocks
• For use with type CC Fuses
• Multple Primary AC Voltages

Product Highlights

This transformer is designed for industrial control applications, providing reliable voltage step-down with enhanced safety features.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: X4100PSF1

Technical Specifications

• Type: CONTACTORS
• UNSPSC Code: 39121521
• Volt Amps: 100
• Phase: 1
• Volts AC Primary: 480, 200, 220, 230, 440/208, 460/240
• Volts AC Secondary: 120, 110/24, 115/25, 23
• Manufacturer Part Number: X4100PSF1
• Manufacturer: ABB
• Product Series: X
• Family Series: ABB Transformers, X Series
• Description: TRANSFORMER, 100VA, 1-PH, OPEN PRI: 460/230/208V, 480/240V, 440/220/2 SEC: 115/24V, 120/25V, 110/23V
• VA Rating: 100 VA
• Primary Voltage: 240 V, 480 V
• Secondary Voltage: 120 V, 24 V
• Enclosed: No
• Primary Fuseholder: Included
• Secondary Fuseholder: Included
• Termination: Integrally Molded Terminal Blocks
• Cover Included: No
• Insulation Class: Class B
• Temperature Rise (F): 176 °F
• Comments: Fuses and IP20 touch safe covers sold separately.
• Net Weight: 6.79 lbs
• Gross Weight: 6.05 lbs
• Maximum Amperage Rating: 4.17/0.87 A
• Power Rating: 100 W
• Dimensions: 4.65 in L x 3.74 in W x 4.53 in H
• Mount: Screw
• Max Operating Temperature: 180 °C
• Min Operating Temperature: 40 °C
• Depth: 118 mm
• Length: 95 mm
• Width: 115 mm
• Environmental Classification: RoHS Non-Compliant
