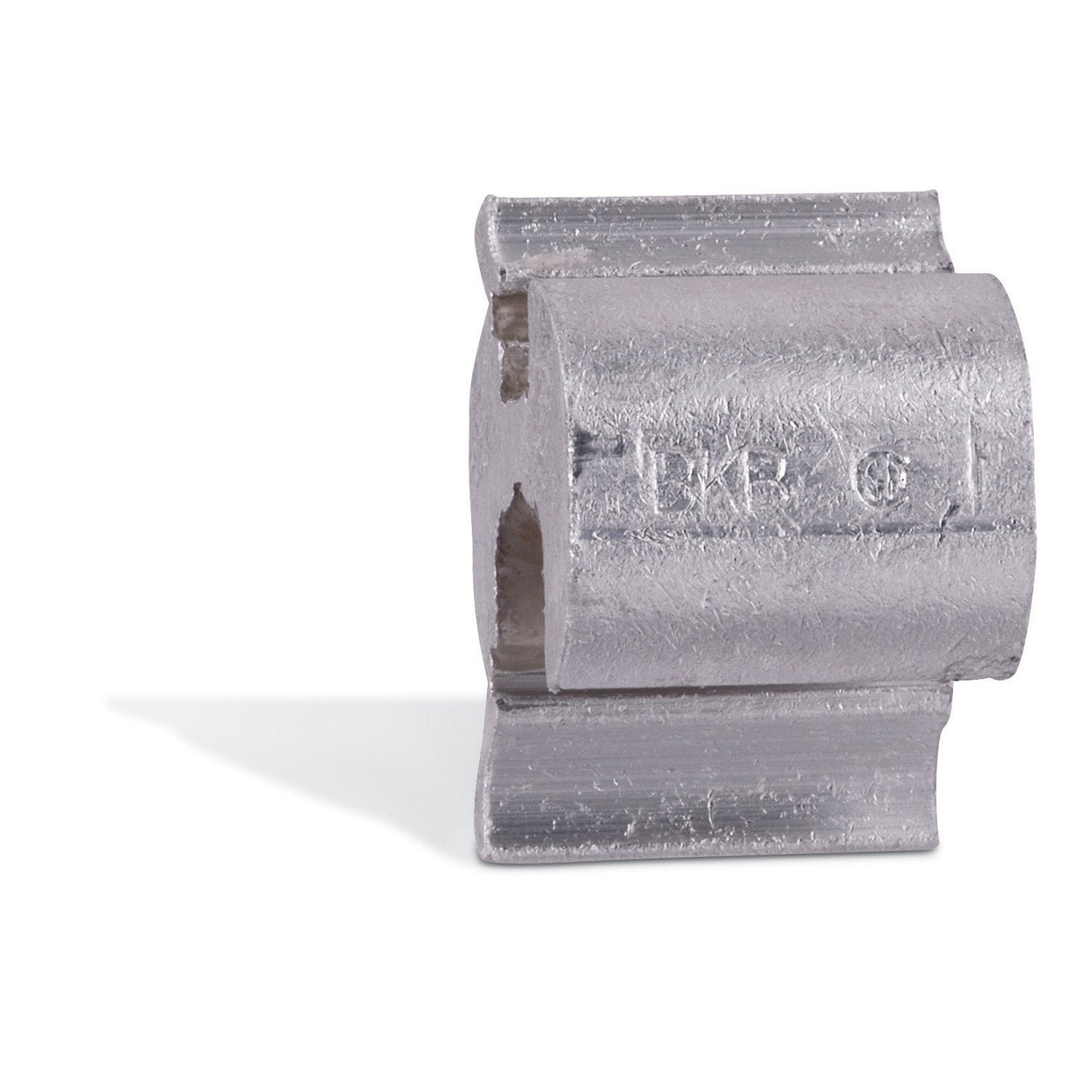

ABB WR9 ITB Compression Connector - Type H Wide Range Compression Tap Connector

Product Description

The ABB WR9 is a compression connector designed for various electrical applications. It is made for use with aluminum and copper conductors. This connector accommodates a range of wire sizes to ensure versatility in your electrical projects.

• Made of high-conductivity aluminum alloy
• Compatible with standard compression tools
• Pre-filled with oxide inhibitor to enhance contact performance

Product Highlights

This compression tap connector is part of the WR Series and offers reliable and efficient connections for both stranded and solid conductors. Its robust design simplifies installation while ensuring secure connectivity.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Product Name: WR9 ITB Compression Connector

Technical Specifications

• Application: For combination of aluminum to aluminum and aluminum to copper conductors
• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
• Dimensions: 13/16 inch length
• Main Run Size: 6 to 3 AWG ACSR, 6 to 2 AWG Stranded, 4 to 1 AWG Solid
• Manufacturer Part Number: WR9
• Material: Aluminum
• Series: WR Series
• Shape: Figure H
• Standards/Approvals: ANSI C119.4 | RUS Accepted
• Tap Size: 8 to 14 AWG Stranded/Solid
• Temperature Rating: 90 degrees Celsius
