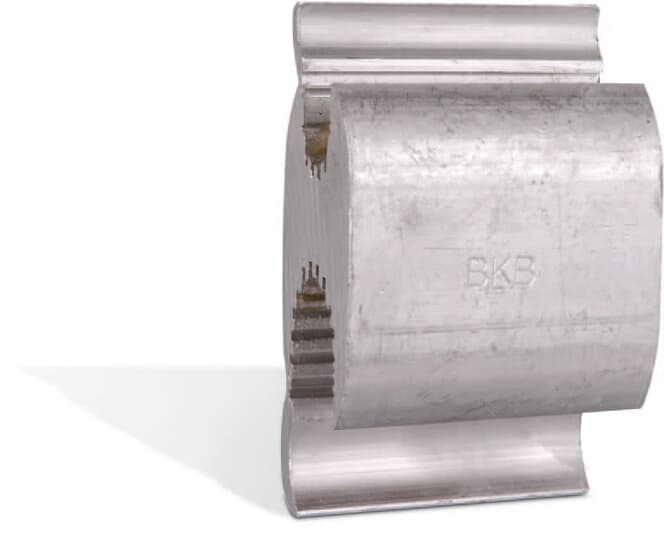

ABB WR835 Blackburn WR835 Compression Connector 2 Inch

Product Description

The ABB WR835 Blackburn compression connector is designed for reliable electrical connections. It features a wide-range, parallel, long sleeve design that accommodates various conductor sizes. This connector is made of aluminum and is suitable for both aluminum to copper and aluminum to aluminum connections.

• Suitable for main conductors: 477 18/0-4/0 ACSR and 556-250 stranded.
• Appropriate for tap conductors: 4/0-1/0 ACSR, 4/0-1/0 stranded, and 4/0-2/0 solid.
• Meets ANSI C119.4 and is RUS accepted for operational use.

Product Highlights

This connector ensures strong contact without deforming the conductor shape. It is prefilled with an oxide inhibitor to enhance conductivity.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Blackburn / Thomas & Betts

Technical Specifications

• Product MPN: WR835
• Length: 2 inches
• Material: Aluminum
• Finish: Tin Plated
• Wire Size: Main: 477 18/0-4/0 ACSR or 556-250 STR; Tap: 4/0-1/0 ACSR or 4/0-1/0 STR or 4/0-2/0 SOL AWG
• Insulated: No
• Temperature Rating: 90 degrees C
• Number of Conductors: 2
