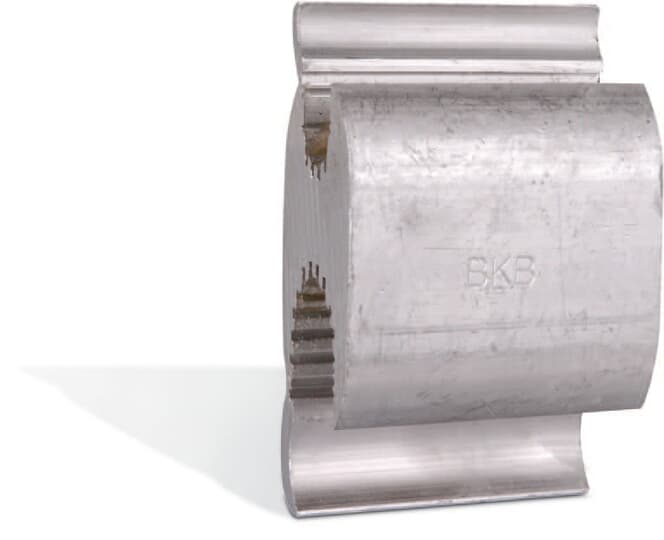

ABB WR775 Blackburn WR775 Compression Connector

Product Description

The ABB WR775 is a compression connector designed for utility applications. It is made from aluminum and is suitable for wide-range connections. The connector supports main conductors of sizes from 397 eighteen one four oh ACSR to 400 four oh stranded AWG. It is particularly efficient for tap connections and can accommodate various conductor types.

• Manufactured from high-strength aluminum alloy for optimal conductivity.
• Compatible with hydraulic tools of twelve tons or greater.
• Includes oxide inhibitor for enhanced contact performance.

Product Highlights

This connector is designed to provide reliable connections between aluminum and copper conductors, ensuring durability and performance.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Blackburn / Thomas & Betts

Technical Specifications

• Material: Aluminum
• Finish: Tin Plated
• Length: 3 inches
• Wire Size: Main: 397 (18/1)-4/0 ACSR or 400-4/0 STR AWG; Tap: 397 (18/1)-4/0 ACSR or 400-4/0 STR AWG
• Temperature Rating: 90 degrees C
• Number of Conductors: 2
