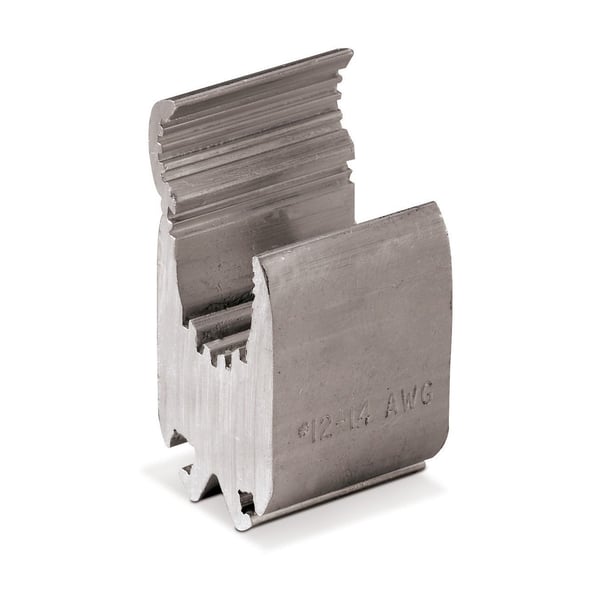

ABB WR502 Blackburn WR502 Compression Connector

Product Description

The ABB WR502 Compression Connector is designed for reliable connections in electrical applications. This connector supports multiple wire sizes and is suitable for various conductor types.

• Wide-range compatibility with aluminum and copper conductors
• Specifically designed for ACSR and stranded main/run conductors
• Features a tin-plated aluminum construction for optimal conductivity

Product Highlights

The WR502 compression connector enables efficient connections without altering conductor shape. Its features support effective installation and compliance with industry standards.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Blackburn / Thomas & Betts

Technical Specifications

• Type: Type H Wide Range
• Shape: H
• Material: Aluminum
• Dimensions: 1-1/2 inches
• Main Run Size: 4/0 to 3/0 AWG ACSR/Stranded
• Tap Size: 8 to 10 AWG Stranded, 6 to 10 AWG Solid Tap A, 12 to 14 AWG Stranded, 12 to 14 AWG Solid Tap B
• Temperature Rating: 90 degrees C
• Connection Type: Compression
• Standards/Approvals: ANSI C119.4, RUS Accepted
