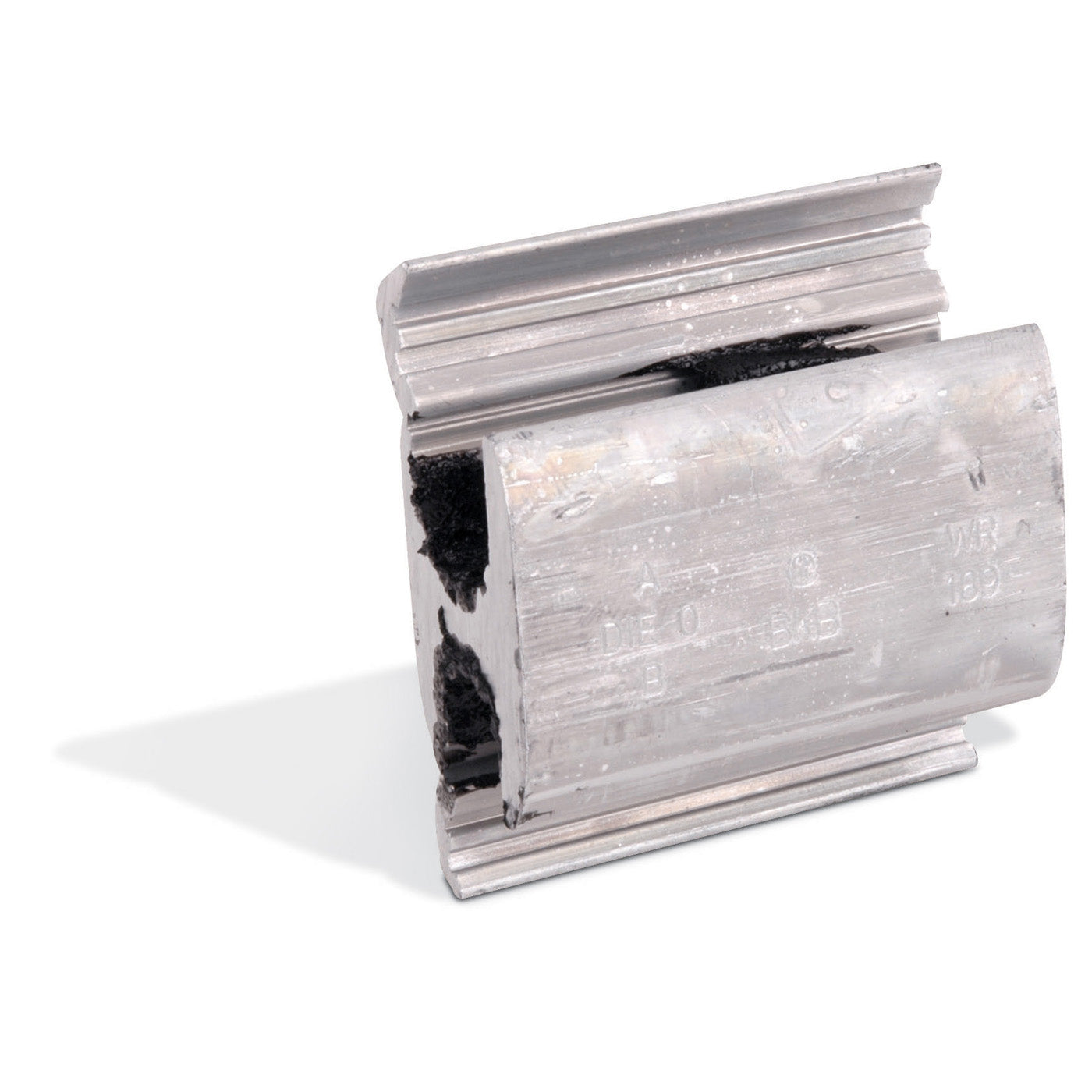

ABB WR379 ITB Compression Connector

Product Description

The Blackburn WR379 ITB Compression Connector is designed for effective electrical connections. It accommodates various sizes of conductors, including 4/0 to 3/0 AWG ACSR and 6 to 1 AWG stranded wires. This product is essential for connecting aluminum and copper conductors and is suitable for overhead and grounding applications.

• Made from high-strength aluminum alloy for durability.
• Compatible with standard compression tools for easy installation.
• Features a ribbed design for optimal conductor contact.

Product Highlights

The WR379 connector provides a reliable solution for connecting multiple types of conductors.

Product Information

Standard Information

• Brand: ABB - Installation Products
• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded

Technical Specifications

• Application: For aluminum to aluminum and aluminum to copper conductors
• Dimensions: 1-13/16 inches long
• Main Run Size: 4/0 to 3/0 AWG ACSR, 4/0 AWG Stranded
• Material: Aluminum
• Shape: H
• Temperature Rating: 90 degrees Celsius
• Specifications: D, D3 Die Code, 0.475 to 0.563 inches diameter main conductor, 0.162 to 0.332 inches diameter tap conductor, 2-Conductor
• Standards/Approvals: ANSI C119.4|RUS Accepted
• Tap Size: 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 1/0 AWG Solid
