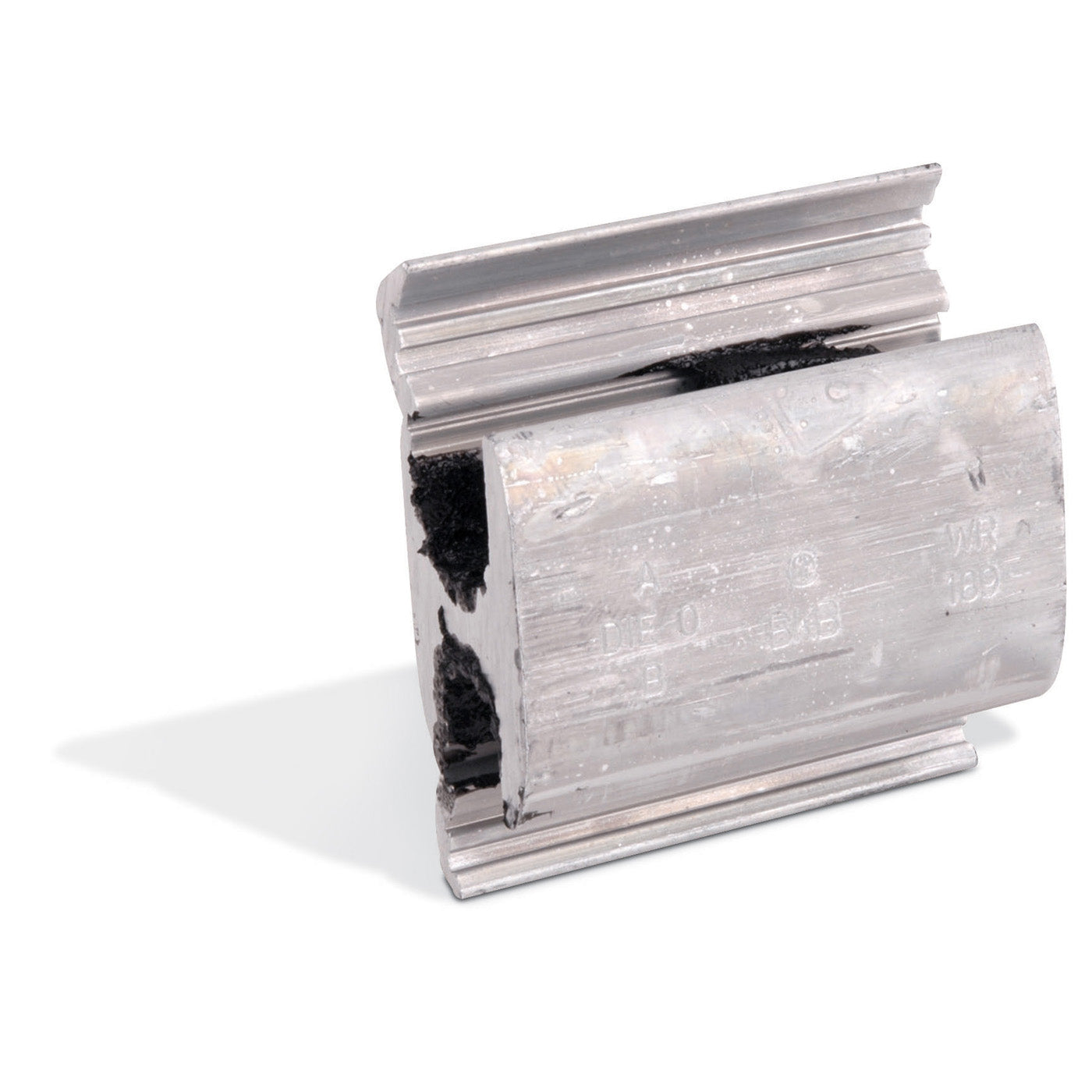

ABB WR289 ITB Compression Connector

Product Description

The ABB WR289 ITB Compression Connector is designed for various electrical applications. It effectively connects aluminum and copper conductors. This product supports different wire sizes, ensuring a reliable and secure electrical connection.

• Compatible with various conductor types including ACSR, aluminum, copper, solid, and stranded.
• Utilizes a ribbed design for enhanced connection stability.
• No special tools needed for installation with standard compression tools.

Product Highlights

ABBs compression connector is field-tested for longevity and performance. It includes a prefilled oxide inhibitor to maintain conductivity.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78378610006

Technical Specifications

• Application: For combination of aluminum to aluminum and aluminum to copper conductors
• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
• Dimensions: 1-13/16 inches long
• Main Run Size: 2/0 to 1/0 AWG ACSR, 3/0 to 2/0 AWG Stranded
• Material: Aluminum
• Shape: H
• Specifications: D, D3 Die Code, 0.398 to 0.47 inches in Diameter Main Conductor, 0.162 to 0.332 inches in Diameter Tap Conductor, 2-Conductor
• Standards/Approvals: ANSI C119.4, BAA Compliant, RUS Accepted
• Tap Size: 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 1/0 AWG Solid
• Temperature Rating: 90 degrees Celsius
• Type: Type WR Wide Range
