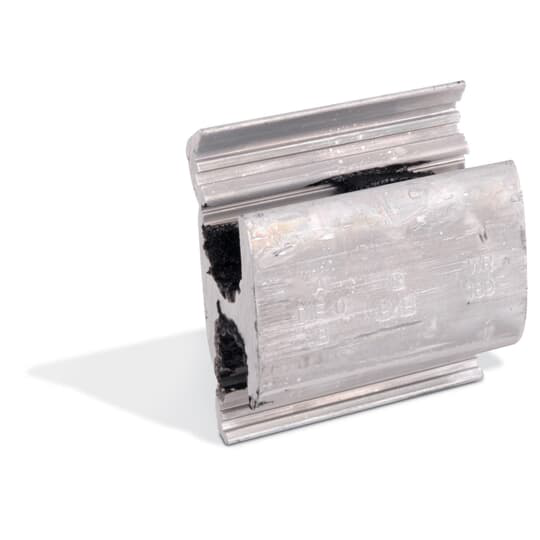

ABB WR279 Blackburn WR279 Compression Connector Power 1-13/16 Inch

Product Description

ABB WR279 is a Blackburn compression connector designed for various conductor combinations. It fits 2/0 to 1 ACSR, 3/0 to 1/0 stranded, and 4/0 to 2/0 solid conductors. This aluminum connector supports crimp connections and is suitable for both aluminum and copper wires.

• RUS accepted and complies with ANSI C119.4
• Excellent connector contact without distorting conductor shape
• Constructed from 1350 aluminum alloy for durability and conductivity

Product Highlights

The Blackburn WR279 Compression Connector is efficient for connecting various conductor types without compromising strength and conductivity.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Blackburn / Thomas & Betts

Technical Specifications

• Type: Wide-Range, Parallel, Short Sleeve
• Material: Aluminum
• Length: 1-13/16 inches
• Wire Size Main: 2/0-1 ACSR, 3/0-1/0 Stranded, 4/0-2/0 Solid
• Wire Size Tap: 2/0-1 ACSR, 3/0-1/0 Stranded, 3/0-2/0 Solid
• Temperature Rating: 90 degrees C
• Die Code: D, D3
• Connection Type: Compression
