ABB WR179 Blackburn WR179 Compression Connector

Product Description

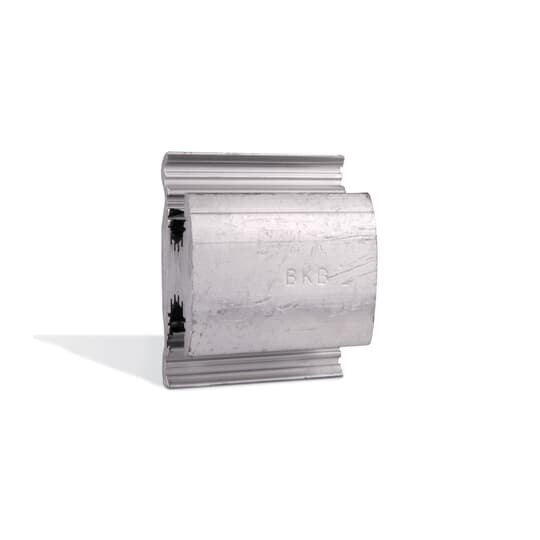

The ABB WR179 Blackburn Compression Connector is a reliable solution for electrical connections in various applications. This aluminum wide-range H-type connector supports wire sizes ranging from one/zero to three ACSR, one/zero to two stranded, and one/zero to one solid. It can accommodate taps from four to six ACSR and three to six stranded or two to six solid conductors. Designed using high-strength aluminum alloy, this connector promotes excellent conductivity.

• Compatible with aluminum to aluminum and aluminum to copper conductors.
• Meets ANSI C119.4 standards and is RUS accepted.
• Features fold-in tabs for secure interlocking.

Product Highlights

This compression connector delivers strong connectivity without altering conductor shape.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Blackburn / Thomas & Betts

Technical Specifications

• Material: Aluminum
• Finish: Tin Plated
• Length: One and seven-eighths inches
• Wire Size Main: One/zero to three ACSR or one/zero to two stranded or one/zero to one solid AWG
• Wire Size Tap: Four to six ACSR or three to six stranded or two to six solid AWG
• Temperature Rating: Ninety degrees Celsius
• Connection Type: Compression
• Number of Conductors: Two
