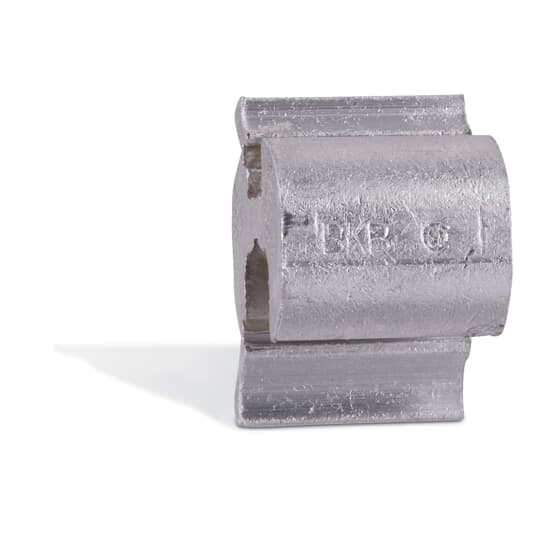

ABB WR139 Blackburn WR139 Compression Connector

Product Description

The ABB WR139 Blackburn WR139 Compression Connector is designed for electrical utility applications. This product is suitable for aluminum conductors with a range from one aught to four ACSR and from two aught to three stranded or solid. It also accommodates tap conductors sized eight to ten stranded and six to ten solid, as well as groove sizes ranging from twelve to fourteen stranded or solid.

• Durable aluminum construction for high strength.
• Compatible with various conductor types including aluminum and copper combinations.
• Meets RUS and ANSI C119.4 standards.

Product Highlights

The ABS WR139 compression connector features a tin-plated finish that enhances conductivity and strength.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Blackburn / Thomas & Betts

Technical Specifications

• Wire Size: Main: 1/0-4 ACSR, 2/0-3 stranded, 2/0-2 solid AWG
• Material: Aluminum
• Type: Wide-Range, Parallel, Short Sleeve
• Length: 1-1/2 inches
• Connection Type: Compression
• Temperature Rating: 90 degrees C
• Number of Conductors: 3
• Used With: Round, solid and stranded conductors
