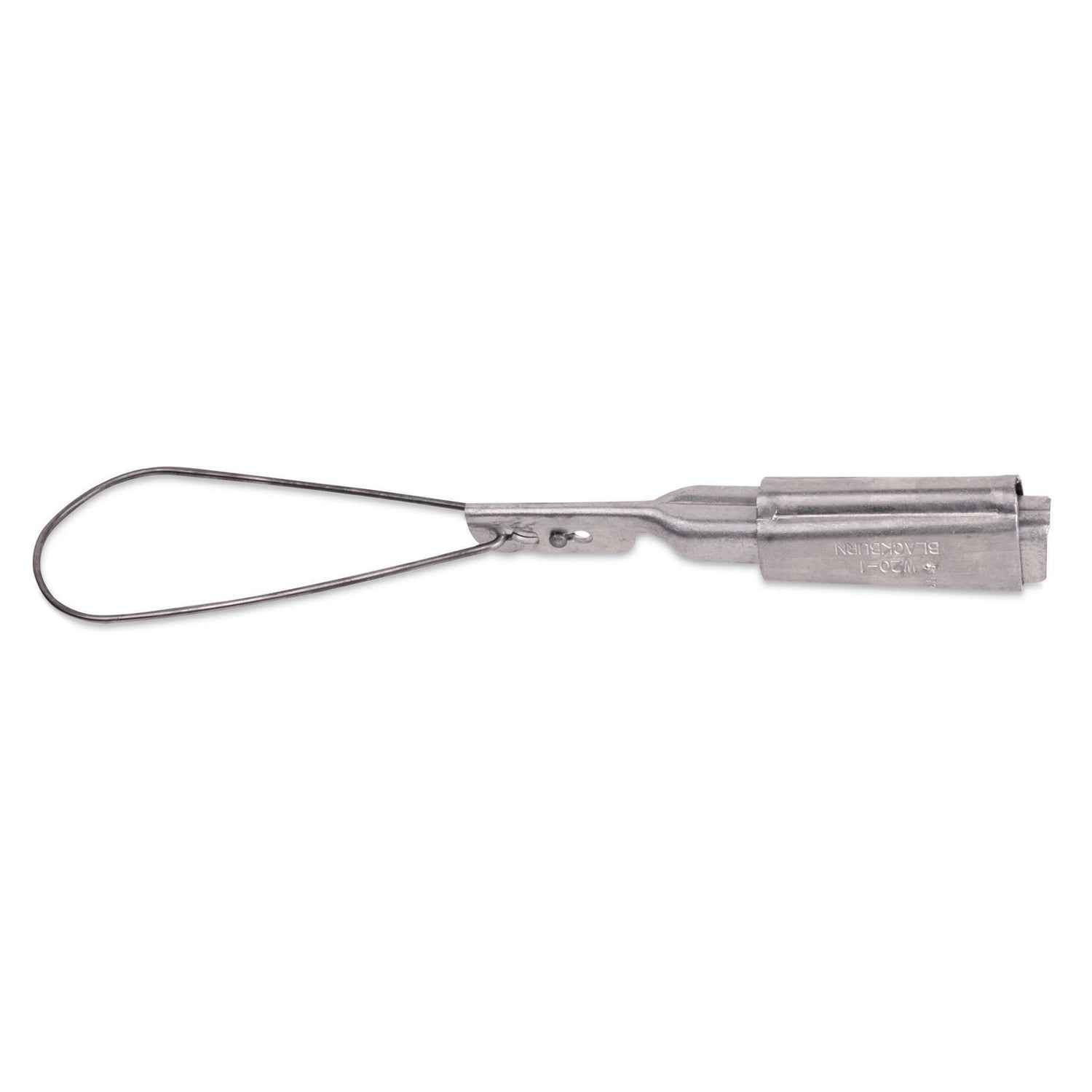

ABB W40-1 Service Entrance Wedge Clamp 35 kV 4/0 to 2/0 AWG Stranded W40-1

Product Description

The ABB W40-1 Service Entrance Wedge Clamp is designed for 4/0 to 2/0 AWG stranded conductors. This clamp is suitable for use in overhead utility applications. It ensures a secure connection and is effective in dead end self-supporting drop wire installations.

• Works with ASCR, AAAC, and stranded conductors
• Flexible design suitable for various environmental conditions
• Rated for voltage up to thirty-five kilovolts

Product Highlights

This clamp features a lightweight aluminum construction that is bare for easy handling and installation. It allows for adjustments in drop wire sag and can be attached to bare neutral at any span point.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78378633204

Technical Specifications

• Type: W
• Color: Red
• Conductor Size: 4/0 to 2/0 AWG
• Conductor Type: ASCR/AAAC/Stranded
• Voltage Rating: 35 kV
• Material: Aluminum
• Dimensions: Twelve and three-fourths inches long by two and three-eighths inches deep
• Application: For dead end self-supporting drop wire applications
