Abb UA9AGB Pvc 90 Degree Elbow Bell End 1-1/4 in Sch 40

Product Description

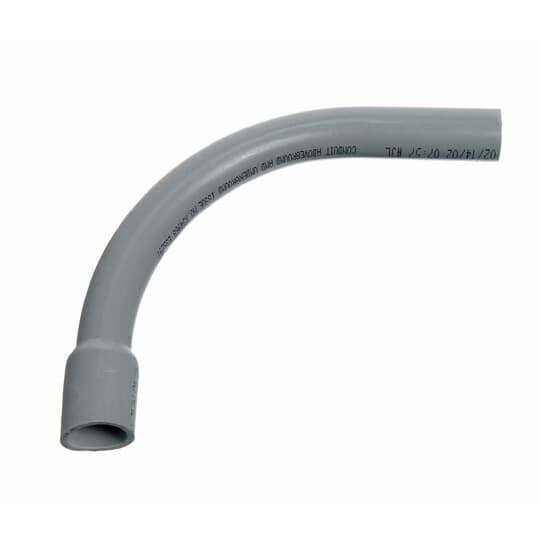

The ABB UA9AGB is a 1-1/4 inch Schedule 40 PVC 90-degree elbow with a belled end, designed for use in rigid conduit and piping systems. This fitting makes a standard-radius 90-degree direction change in a run of Schedule 40 PVC pipe or conduit. The belled end allows direct socket connection without a separate coupling, simplifying the joint at one end. Licensed plumbers, pipefitters, and electricians install this type of fitting in both underground and above-grade applications where a secure, solvent-welded PVC connection is required.

This elbow is suited for residential and light commercial installations where Schedule 40 PVC conduit or pressure pipe is routed around obstructions or changes direction. The 1-1/4 inch size fits standard Schedule 40 pipe of that nominal diameter. It is commonly used in electrical conduit runs, irrigation systems, and drainage applications that call for Schedule 40 PVC fittings. The belled end configuration is particularly useful in conduit work where pulling wire through a smooth, continuous joint is a priority.

Key Features

• 90-degree bend angle for standard right-angle direction changes
• 1-1/4 inch nominal size fits Schedule 40 PVC pipe
• Schedule 40 wall thickness for compatibility with standard fittings and solvent-weld joints
• Belled end eliminates the need for a separate coupling at one connection point
• PVC construction resists corrosion and moisture

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/4 inch Schedule 40 PVC conduit and pipe systems.

Installation Notes

Installation is performed by licensed plumbers or electricians depending on application. Clean and deburr pipe ends before applying PVC primer and solvent cement per the fitting manufacturer and local code requirements. Follow IFGC, IPC, or NEC guidelines as applicable to the specific use. Allow full cure time before pressurizing or pulling wire through the assembly.

Technical Specifications

• Material: PVC
• Nominal Size: 1-1/4 inches
• Schedule: 40
• Bend Angle: 90 degrees
• Bend Radius: Standard
• End Type: Belled End
• UPC: 034481196204

Standard Information

• Brand: ABB
• Manufacturer Part Number: UA9AGB
