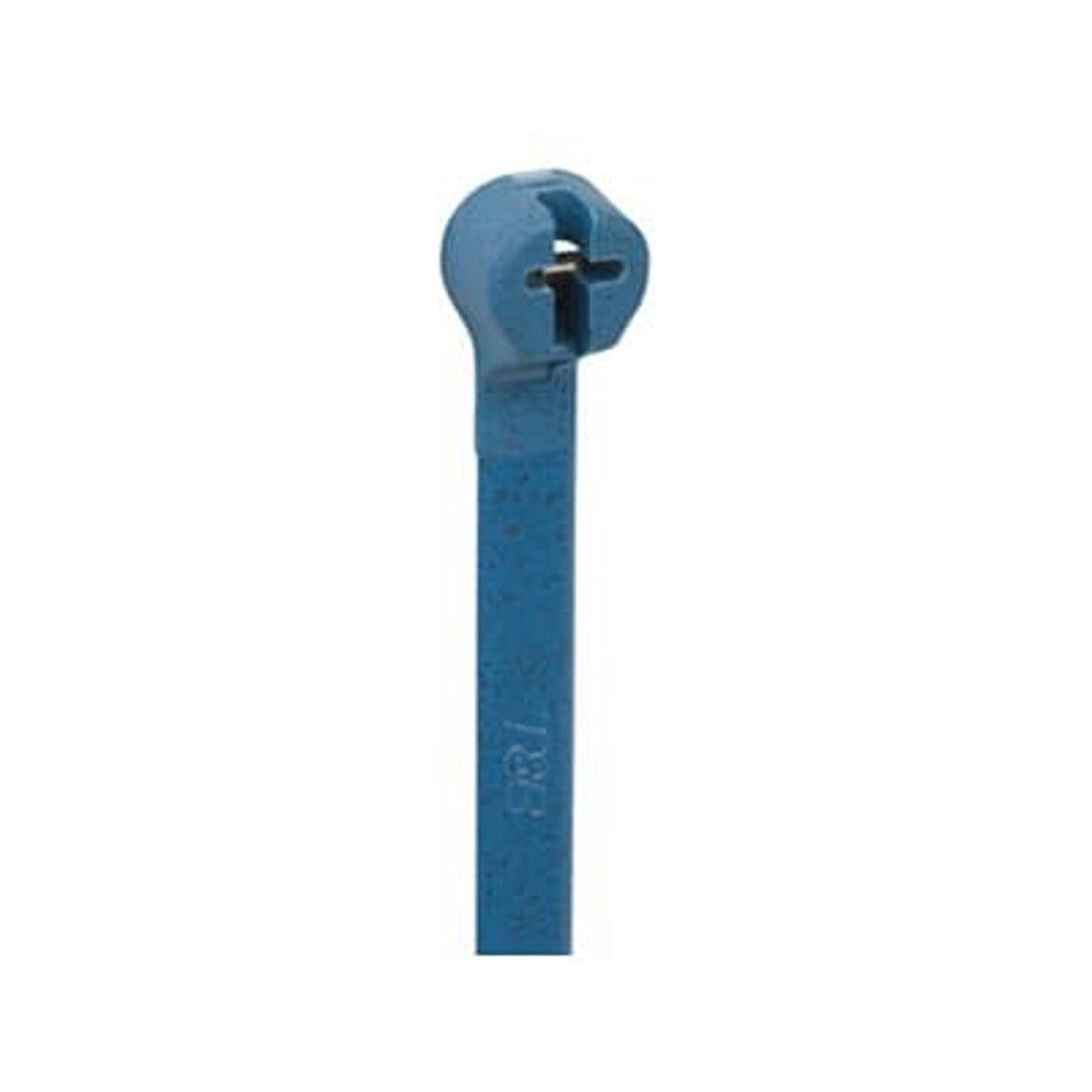

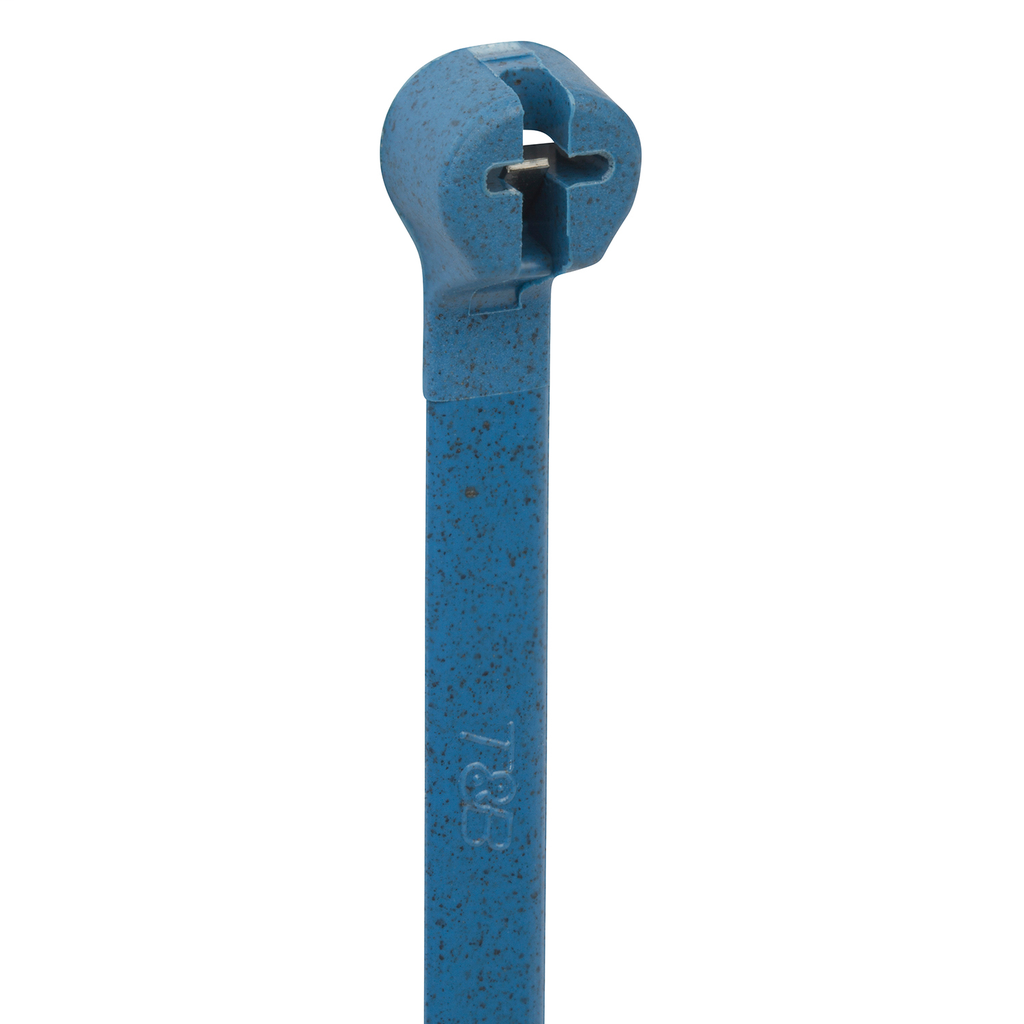

Abb TY528M-NDT Detectable Cable Tie with Stainless Steel Locking Device 50 Pounds 14 Inch

Product Description

The ABB TY528M-NDT is a detectable cable tie constructed from Polyamide (Nylon 6.6) for indoor applications. It features a stainless steel locking device and is designed for temperatures up to 85 degrees Celsius (185 F). This cable tie has a length of 361mm (14.2 inches), a width of 4.67mm (0.184 inches), and a thickness of 1.19mm (0.047 inches). It offers a tensile strength rating of 222 Newtons (50 Pounds).

• Detectable by metal detectors, X-ray equipment, or visual inspection.
• Constructed from Polyamide (Nylon 6.6) material.
• Features a stainless steel locking device for secure fastening.

Product Highlights

This detectable cable tie is suitable for applications requiring contamination control, such as food and beverage processing, and is detectable by various inspection methods.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TY528M-NDT

Technical Specifications

• Catalog Number: TY528M-NDT
• Manufacturer: Thomas & Betts Co
• Selling Unit of Measure: ea
• Type: Detectable
• Brand: ABB
• Color: Blue
• Material: Nylon 6.6 (Polyamide 6.6) with metal pigments
• Sub Brand: Ty-Rap
• Bundle Diameter: 0.138 - 4.01 in
• Tensile Strength: 50 Pounds (222 Newtons)
• Temperature Rating: -40°C to 85°C (-40°F to +185°F)
• Newark Part Number: 22M2105
• Product Range: Ty-Rap Series
• SVHC Status: No SVHC (15-Jan-2018)
• Flammability Rating: UL94V-2
• US ECCN: EAR99
• EU ECCN: Unknown
• RoHS Compliant: RoHS3 Compliant
• RoHS Phthalates Compliant: Yes
• Category: Cable ties
• Lock Mechanism: Stainless Steel Barb, Steel nose
• REACH Compliant: REACH 247 Compliant
• TSCA Compliant: TSCA Section 6(h) Compliant
• Certification/Standard: UL E49405, ZODZ2
• ETIM Classification: EC000046 Cable tie
• Minimum Holding Force: 222 N
• Model Type: Internal toothing
• Band Closure: Steel nose
• Surface Protection: Untreated
• UV Stability (ASTM D6779): No
• Halogen Free: Yes
• Transparent: No
• Reflective (Fluorescent): No
• Text Strip: None
• Solvable Fastener: No
• VG Approval: No
• MIL Approval: No
• UL Approval: Yes
• UNSPSC Code: 26120000
• Series: TY28 Series
• UPC Code: 786210995359
