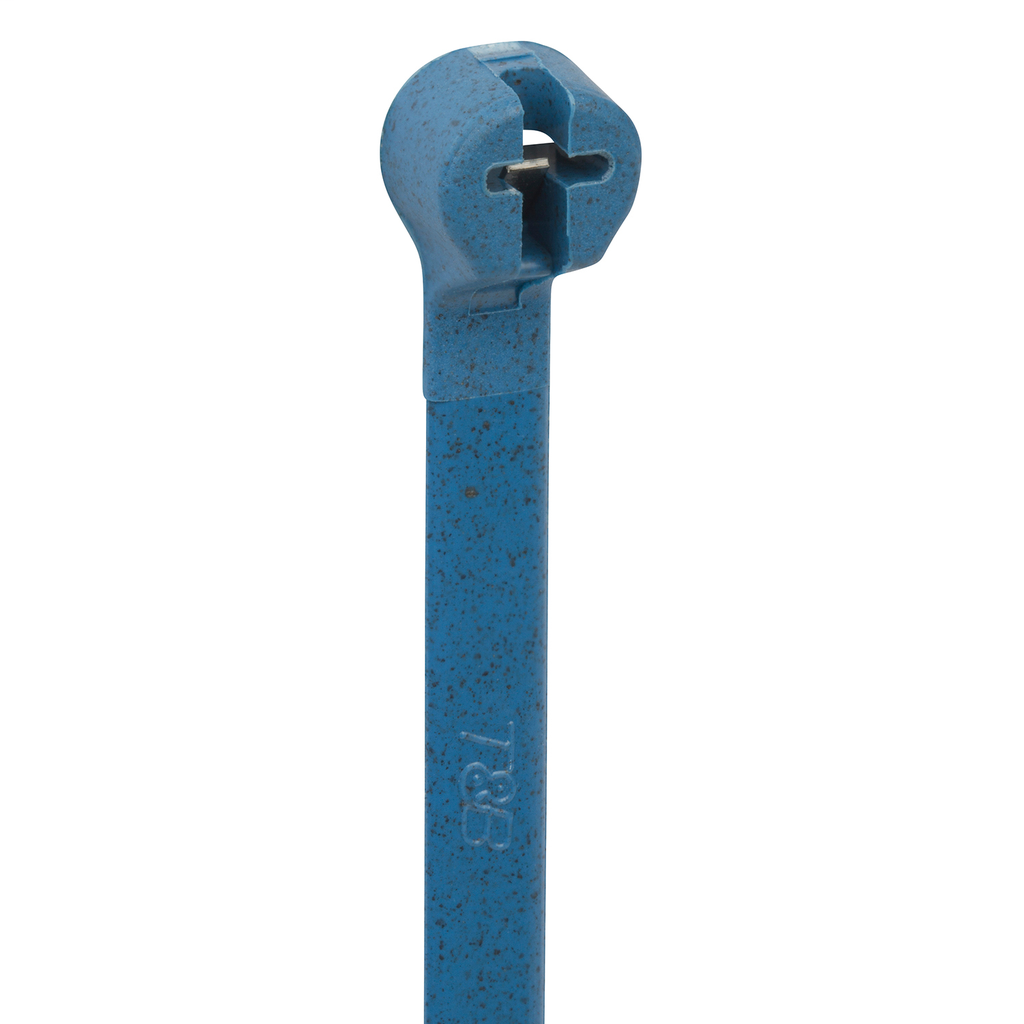

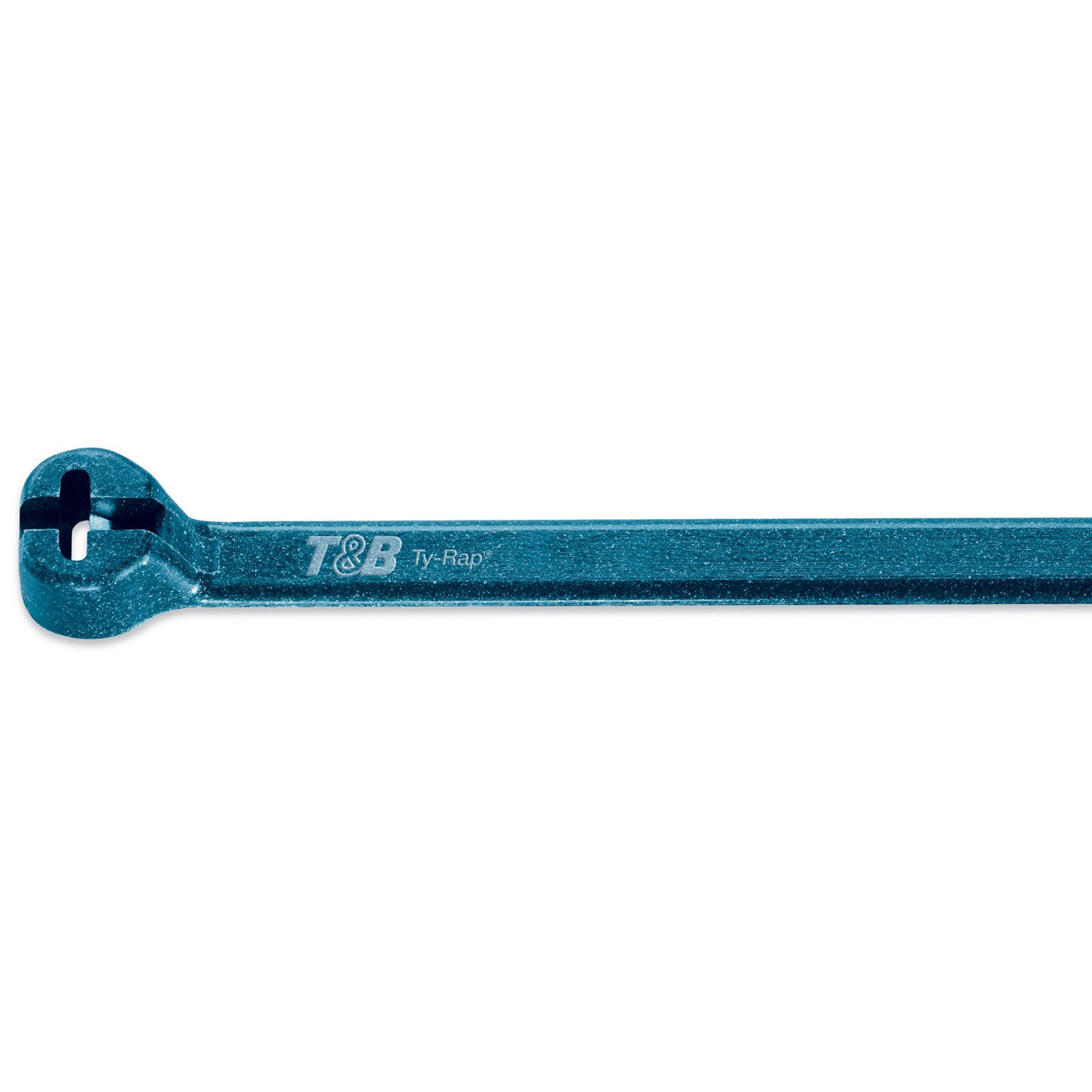

Abb ty523m-ndt 4 inches nylon 6.6 detectable cable tie w/ stainless steel locking device

Product Description

The ABB TY523M-NDT is a detectable cable tie constructed from Polyamide (Nylon 6.6). Designed for indoor applications, it withstands temperatures from -40 to 85 degrees Celsius (185 F). This tie has a length of 92mm (3.6 inches), a width of 2.3mm (0.09 inch), and a thickness of 0.9mm (0.035 inch). It can secure bundles up to 16mm (0.63 inch) in diameter and offers a tensile strength of 80 Newtons (18 Pounds).

• Detectable by metal detectors, X-ray equipment, or visual detection for enhanced safety.
• Constructed from durable Polyamide (Nylon 6.6) for reliable indoor applications.
• Features a tensile strength of 18 pounds (80 Newtons) and withstands temperatures from -40 to 85°C.

Product Highlights

Detectable cable tie for industrial and commercial bundling applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TY523M-NDT
• Country of Origin: United States

Technical Specifications

• MPN: TY523M-NDT
• Manufacturer: Thomas & Betts Co
• Part Number: 549782
• Type: Detectable
• Material: Nylon
• Sub Brand: Ty-Rap®
• Bundle Diameter: 0.08 - 0.63 in
• Tensile Strength: 18 lb
• Temperature Rating: -40 to 85 degrees C
• Brand: ABB
• Application: Indoor
• Product Range: Ty-Rap Series
• Length: 87.3mm
• Width: 2.34mm
• Color: Blue
• RoHS Compliant: Yes
• RoHS Phthalates Compliant: Yes
