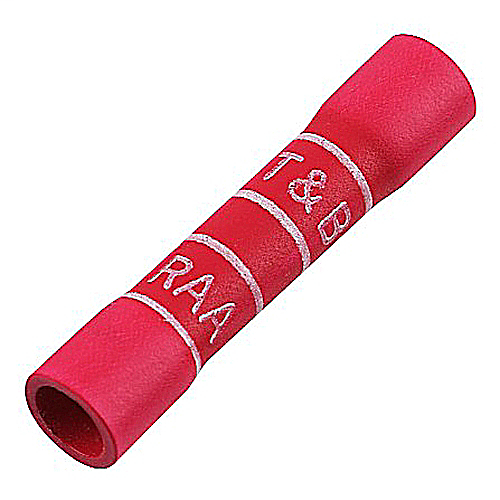

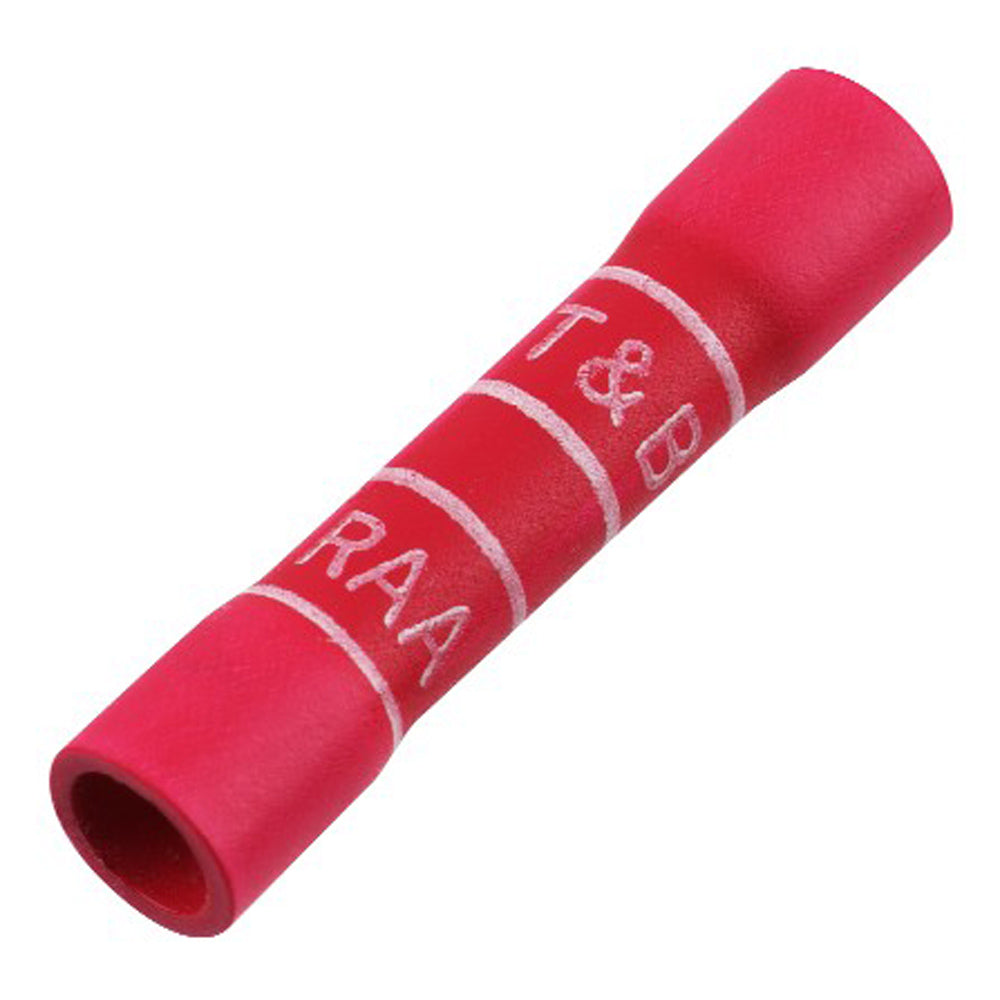

ABB TV18-BS-XV Catamount Vinyl Insulated Butt Splice, 22 to 16 AWG

Product Description

The ABB TV18-BS-XV is a vinyl insulated butt splice designed for use with wire sizes ranging from twenty-two to sixteen AWG. This connector features a length of zero point nine eight six inches. The outer diameter is zero point one five seven inches, and the inner diameter is zero point zero six seven inches. Made from copper and coated with tin, it provides effective conductivity and durability.

• Wire range: 22-16 AWG
• Temperature rating: 75 degrees C
• Voltage rating: 600 V

Product Highlights

The Catamount TV18-BS-XV is effective for electrical connections that require reliable performance under various conditions.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Catamount / Thomas & Betts

Technical Specifications

• Color: Red
• Material: Copper
• Insulation Material: PVC
• Conductor Size: 22-16 AWG
• Length: 0.986 inches
• Outer Diameter: 0.157 inches
• Inner Diameter: 0.067 inches
• Voltage Rating: 600 V
• Temperature Rating: 75 degrees C
• Standards/Approvals: CSA Certified, UL File No. E9809
