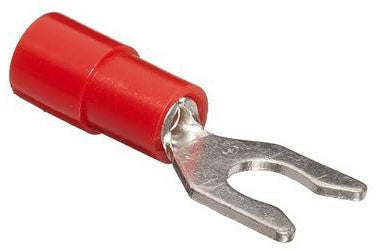

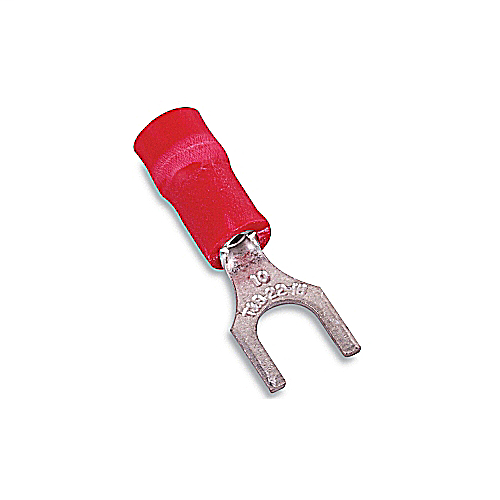

ABB TV18-8F-XV Catamount TV18-8F-XV 22 to 16 AWG #8 Stud Red Electrotinned Copper Vinyl Insulated Fork Terminal

Product Description

The ABB TV18-8F-XV is a vinyl insulated fork terminal designed for wire ranges of twenty-two to sixteen AWG with a #8 stud size. This terminal is suitable for various electrical applications where reliable connections are vital.

• Compatible with round conductors
• Rated for up to six hundred volts
• Temperature rated for seventy-five degrees Celsius

Product Highlights

This product features a molded funnel entry, internal barrel serrations, and a brazed seam for improved performance and reliability. Ideal for both industrial and residential wiring projects.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Catamount / Thomas & Betts

Technical Specifications

• Material: Copper
• Insulation Material: PVC
• Finish: Electro-Tin Plated
• Stud Size: #8
• Voltage Rating: 600 V
• Temperature Rating: 75 degrees C
• Length: 0.866 inches
• Conductor Size: 22 to 16 AWG
• Barrel Size: 0.067 in ID x 0.157 in OD
• Tongue Size: 0.252 in W x 0.03 in THK
• Tongue Type: Fork
• Box Quantity: 900
• Standards/Approvals: UL94 V-0 Flammability Rated | UL File No. E9809
