ABB TV18-6R-XV T&B VNYL INSUL RNG TERM 22 to 16 AWG #6 RED

ABB
Brand: ABB
SKU: TV18-6R-XV
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

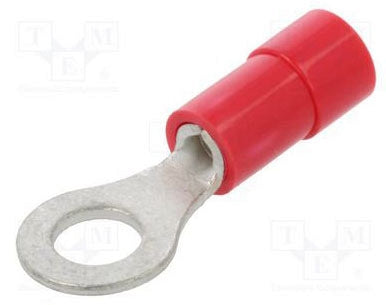

The ABB TV18-6R-XV is a ring terminal designed for 22 to 16 AWG conductors. It features a brazed seam and internal serration barrel to enhance conductivity and tensile strength. This terminal measures zero point eight five eight inches in length and is suited for use with a #6 stud.

  • Utilizes vinyl insulation for protection and durability
  • Includes internal barrel serrations for enhanced strength
  • Molded funnel entry for straightforward installation

Product Highlights

Designed for a variety of commercial and residential applications, this terminal offers reliable performance with a voltage rating of six hundred volts.

Product Information

Standard Information

  • Manufacturer: ABB - Installation Products
  • UPC: 72849414445
Technical Specifications
Application
For WT112M and CM2000A tools
Barrel Size
0.067 inches ID x 0.157 inches OD
Color
Red
Conductor Size
22 to 16 AWG
Finish
Tin Plated
Length
0.858 inches
Manufacturer Part Number
TV18-6R-XV
Material
Copper
Series
T Series
Specifications
0.248 inches Clearance, Vinyl Insulation
Standards/Approvals
cULus Listed, UL94 V-0 Flammability Rated, UL File No. E9809
Stud Size
#6
Temperature Rating
75 degrees C
Tongue Size
0.26 inches W x 0.03 inches THK
Tongue Type
Ring
Voltage Rating
600 V
